INA250 Current Shunt Monitor Evaluation Module

Demonstration circuit 2779A is an 8V, 16A synchronous step-down Silent Switcher® 2 with spread spectrum frequency modulation featuring the LT8644S. The demo board is designed for 1.2V output from a 2.7V to 8V input. The LT8644S is a compact, ultralow emission, high efficiency, and high speed synchronous monolithic stepdown switching regulator. The integrated bypass capacitors optimize all the fast current loops and make it easier to minimize EMI emissions by reducing layout sensitivity. Selectable spread spectrum mode further improves EMI performance, making it perfect solution to the noise sensitive applications. Peak current mode control with minimum on-time of as low as 20ns allows high step-down conversion even at high frequency. The LT8644S switching frequency can be programmed either via an external resistor or an external clock over a 300kHz to 3.5MHz range. The default frequency of demo circuit 2779A is 2MHz. The SYNC/MODE pin on the demo board DC2779A is grounded (JP1 at BURST position) by default for low ripple Burst Mode® operation. It can be configured into different operation modes through JP1 and SYNC terminal (Table 1 in the demo manual). Figure 4 in the demo manual shows the efficiency of the circuit at 3.3V input and 5V input in force continuous mode operation (input from VIN terminal). To get accurate efficiency measurement, measure the input voltage at the VIN_SENSE/GND terminals and measure the output voltage at the VOUT+ SENSE/VOUT– SENSE terminals. Figure 5 shows the LT8644S temperature rise on DC2779A demo board at 3.3V input and 5V input in forced continuous mode. The LT8644S is assembled in a 4mm × 4mm LQFN package with exposed pads for low thermal resistance. The rated maximum continuous load current is 16A, while derating may be necessary for certain input voltage and thermal conditions. The demo board has an EMI filter installed. This EMI filter can be included by applying the input voltage at the VEMI terminal. The EMI performance of the board (with EMI filter) is shown on Figure 6 in the demo manual. The red lines in EMI Performance are CISPR25 Class 5 limits. The figure shows that the LT8644S circuit passes the test with a wide margin. To achieve EMI performance as shown in Figure 6, the input EMI filter is required and the input voltage should be applied to VEMI terminal, and the test setup can be referred to the CISPR25 standards. If the input is applied to VIN terminal, the EMI filter is bypassed. The LT8644S data sheet gives a complete description of the part, the operation and application information. The data sheet must be read in conjunction with the demo manual for demo circuit 2779A. The layout recommendations for low EMI operation and maximum thermal performance are available in the data sheet section Low EMI PCB Layout and Thermal Considerations. Contact ADI applications engineer for support.

RF Development Tools Evaluation board for ADL5358

BOARD EVALUATION FOR AD7939CBZ

The AD7766/AD7766-1/AD7766-2 are high performance,24-bit, oversampled SAR analog-to-digital converters (ADCs).The AD7766/AD7766-1/AD7766-2 combine the benefits of alarge dynamic range and input bandwidth, consuming 15 mW,10.5 mW, and 8.5 mW power, respectively, and are contained ina 16-lead TSSOP package.Ideal for ultralow power data acquisition (such as PCI- and USBbasedsystems), the AD7766/AD7766-1/AD7766-2 provide 24-bitresolution. The combination of exceptional SNR, wide dynamicrange, and outstanding dc accuracy make the AD7766/AD7766-1/AD7766-2 ideally suited for measuring small signal changes over awide dynamic range. This is particularly suitable for applicationswhere small changes on the input are measured on larger ac ordc signals. In such an application, the AD7766/AD7766-1/AD7766-2 accurately gather both ac and dc information.The AD7766/AD7766-1/AD7766-2 include an on-board digitalfilter (complete with linear phase response) that acts to eliminateout-of-band noise by filtering the oversampled input voltage.The oversampled architecture also reduces front-end antialiasrequirements. Other features of the AD7766/AD7766-1/AD7766-2include a SYNC/PD (synchronization/power-down) pin, allowingthe synchronization of multiple AD7766/AD7766-1/AD7766-2devices. The addition of an SDI pin provides the option of daisychaining multiple AD7766/AD7766-1/AD7766-2 devices.The AD7766/AD7766-1/AD7766-2 operate from a 2.5 V supplyusing a 5 V reference. The devices operate from ?40?C to +105?C. Applications Low power PCI/USB data acquisition systems Low power wireless acquisition systems Vibration analysis Instrumentation High precision medical acquisition

The AD7262/AD7262-5 are dual, 12-bit, high speed, low power, successive approximation ADCs that operate from a single 5 V power supply. The AD7262 features throughput rates of up to 1 MSPS per on-chip ADC. The AD7262-5 features throughput rates of up to 500 kSPS. Two complete ADC functions allow simultaneous sampling and conversion of two channels. Each ADC is preceded by a true differential analog input with a PGA. There are 14 gain settings available: ?1, ?2, ?3, ?4, ?6, ?8, ?12, ?16, ?24, ?32, ?48, ?64, ?96, and ?128.The AD7262/AD7262-5 contain four comparators. Comparator A and Comparator B are optimized for low power, while Comparator C and Comparator D have fast propagation delays. The AD7262/AD7262-5 feature a calibration function to remove any device offset error and programmable gain adjust registers to allow for input path (for example, sensor) offset and gain compensation. The AD7262/AD7262-5 have an on-chip 2.5 V reference that can be disabled if an external reference is preferred.The AD7262/AD7262-5 are ideally suited for monitoring small amplitude signals from a variety of sensors. They include all the functionality needed for monitoring the position feedback signals from a variety of analog encoders used in motor control systems.Product Highlights Integrated PGA with a variety of flexible gain settings to allow detection and conversion of low level analog signals. Each PGA is followed by a dual simultaneous sampling ADC, featuring throughput rates of 1 MSPS per ADC for the AD7262. The conversion results of both ADCs are simultaneously available on separate data lines or in succession on one data line if only one serial port is available. Four integrated comparators that can be used to count signals from pole sensors in motor control applications. Internal 2.5 V reference.

The?AD7792/AD7793 are low power, low noise, complete analog front ends for high precision measurement applications. The AD7792/AD7793 contain a low noise 16-/24-bit ?-? ADC with three differential analog inputs. The on-chip, low noise instrumentation amplifier means that signals of small amplitude can be interfaced directly to the ADC. With a gain setting of 64, the rms noise is 40 nV when the update rate equals 4.17 Hz.The devices contain a precision low noise, low drift internal band gap reference and can accept an external differential reference. Other on-chip features include programmable excitation current sources, burnout currents, and a bias voltage generator. The bias voltage generator sets the common-mode voltage of a channel to AVDD/2The devices can be operated with either the internal clock or an external clock. The output data rate from the parts is software-programmable and can be varied from 4.17 Hz to 470 Hz.The parts operate with a power supply from 2.7 V to 5.25 V. They consume a current of 400 ?A typical and are housed in a 16-lead TSSOP package.Applications Thermocouple measurements RTD measurements Thermistor measurements Gas analysis Industrial process control Instrumentation Portable instrumentation Blood analysis Smart transmitters Liquid/gas chromatography 6-digit DVM

The AD7794/AD7795 are low power, low noise, complete analog front ends for high precision measurement applications. They contain a low noise, 24-/16-bit ?-? ADC with six differential inputs. The on-chip low noise instrumentation amplifier means that signals of small amplitude can be interfaced directly to the ADC.Each device contains a precision, low noise, low drift internal band gap reference, and can also accept up to two external differential references. Other on-chip features include programmable excitation current sources, burnout currents, and a bias voltage generator that is used to set the common-mode voltage of a channel to AVDD/2. The low-side power switch can be used to power down bridge sensors between conversions, minimizing the system?s power consumption. The AD7794/AD7795 can operate with either an internal clock or an external clock. The output data rate from each part can vary from 4.17 Hz to 470 Hz.Both parts operate with a power supply from 2.7 V to 5.25 V. The B-grade parts (AD7794 and AD7795) are specified for a temperature range of ?40?C to +105?C while the C-grade part (AD7794) is specified for a temperature range of ?40?C to +125?C. They consume a current of 400 ?A typical and are housed in a 24-lead TSSOP.Applications Temperature measurement Pressure measurement Weigh scales Strain gage transducers Gas analysis

BOARD EVALUATION LM95221

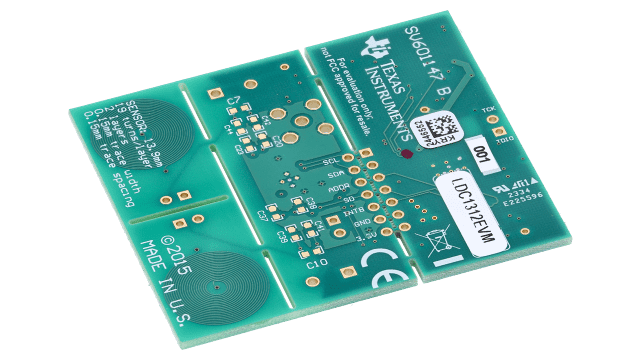

LDC1312 Evaluation Module for Inductance to Digital Converter with Sample PCB Coils
