LTC3863EMSE Demo Board | 4.5V-16V; VOUT = -5.2V @ 1.7A or -12V @ 1A
Analog Devices Inc.

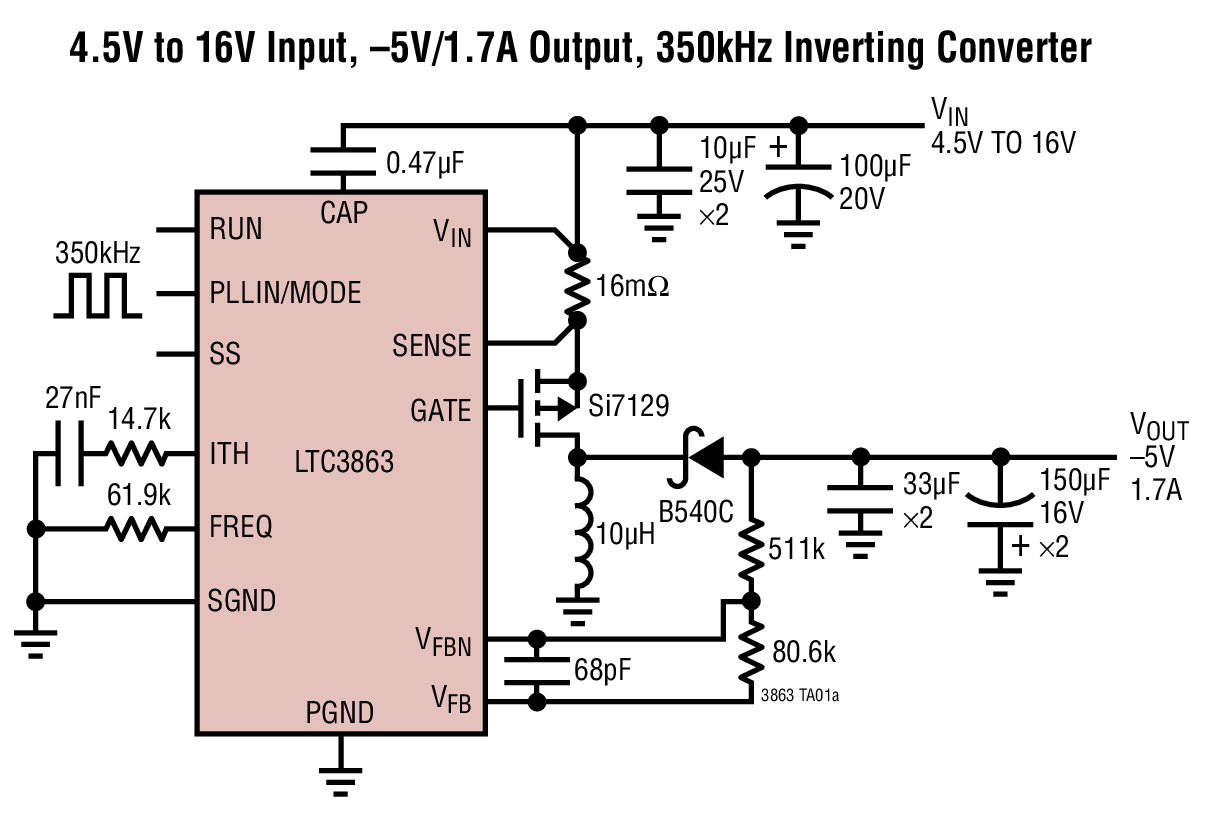

Demonstration circuit 1737A is a current-mode inverting DC/DC converter featuring the LTC3863. The board operates from an input range of 4.5V to 16V, and provides a –5.2V, 1.7A output or a –12V, 1A output (jumper selectable). It operates at 400kHz and may be synchronized to an external clock. A soft-start feature controls output voltage slew rate at start-up, reducing current surge and voltage overshoot. Burst Mode® operation that improves efficiency at light loads can be enabled with a jumper. A power good output signal is provided. The demonstration board has options for larger MOSFET and diode packages on the back of the board for higher output current requirements.
* $155.83 - * $165.41
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC1737A-ND | 1 | $146.60 | $146.60 | $146.60 | $146.60 | $146.60 | $146.60 | Buy | |
|
|
Analog Devices Inc | DC1737A | $147.12 | $147.12 | $147.12 | $147.12 | $147.12 | $147.12 | Buy | ||
|
 |
Arrow North American Components | DC1737A | 2 | 1 | $125.00 | $125.00 | $125.00 | $125.00 | $125.00 | $125.00 | Buy |
|
 |
element14 APAC | DC1737A | 5 | 1 | * $160.09 | * $160.09 | * $160.09 | * $160.09 | * $160.09 | * $160.09 | Buy |
|
 |
Farnell | DC1737A | 5 | 1 | * $155.83 | * $155.83 | * $155.83 | * $155.83 | * $155.83 | * $155.83 | Buy |
|
|
Mouser Electronics | 584-DC1737A | 2 | 1 | $131.03 | $131.03 | $131.03 | $131.03 | $131.03 | $131.03 | Buy |
|
|
Newark | DC1737A | 5 | 1 | $152.04 | $152.04 | $152.04 | $152.04 | $152.04 | $152.04 | Buy |
|
|
Verical Marketplace | DC1737A | 99 | 1 | $125.00 | $125.00 | $125.00 | $125.00 | $125.00 | $125.00 | Buy |
