Analog Devices Inc.

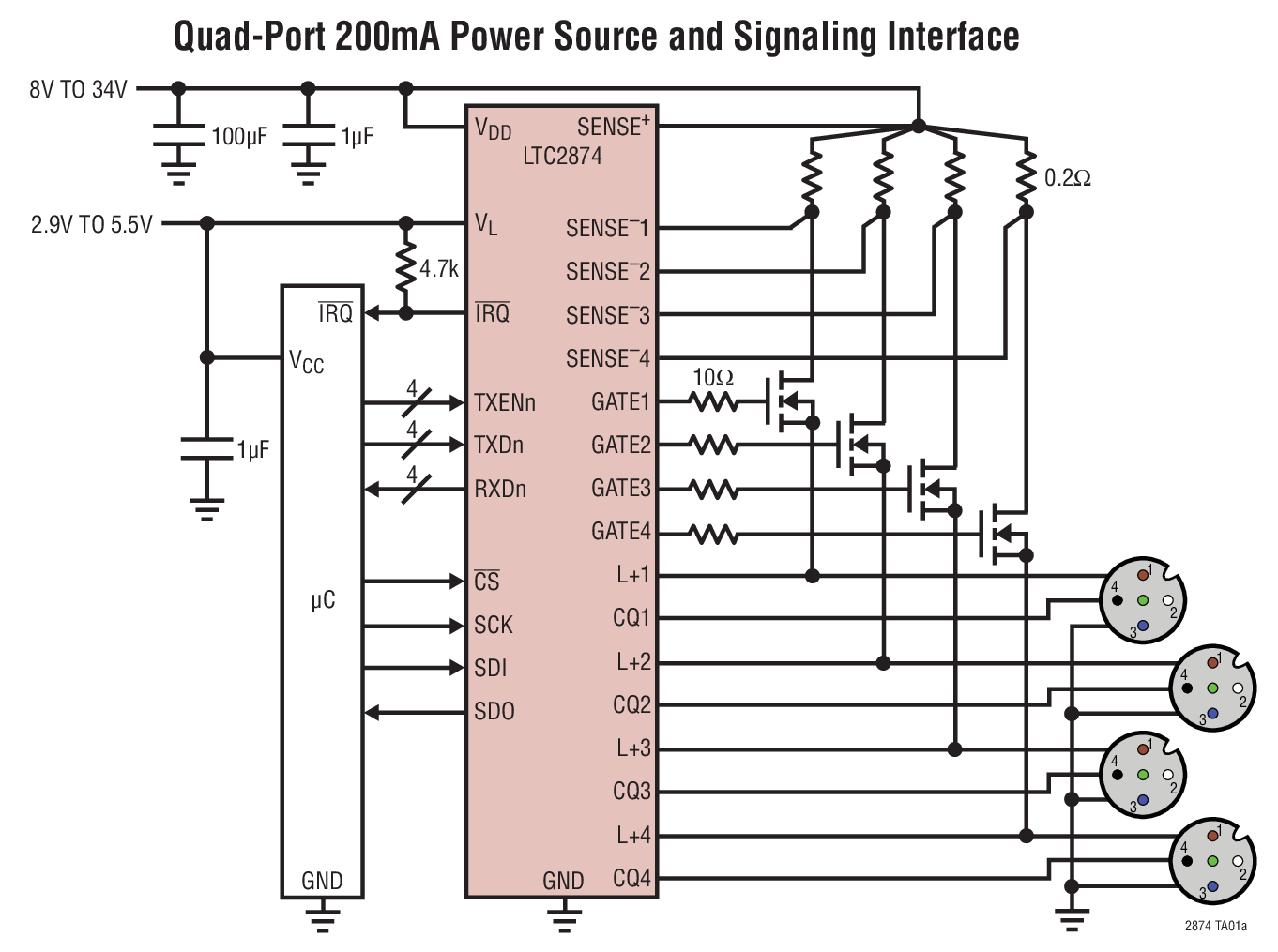

The LTC2874 provides a rugged, 4-port IO-Link power and communications interface to remote devices connected by cables up to 20m in length.Output supply voltage and inrush current are ramped up in a controlled manner using external N-channel MOSFETs, providing improved robustness compared to fully integrated solutions.Wake-up pulse generation, line noise suppression, connection sensing and automatic restart after fault conditions are supported, along with signaling at 4.8kb/s, 38.4kb/s, and 230.4kb/s.Configuration and fault reporting are exchanged using a SPI-compatible 4-wire interface that operates at clock rates up to 20MHz.The LTC2874 implements an IO-Link master PHY. For IO-Link device designs, see the LT3669.Applications IO-Link Masters Intelligent Sensors and Actuators Factory Automation Networks

$147.12 - $152.26
Distributor SKU Stock MOQ 1 10 50 100 1000 10000 Purchase
DigiKey DC1880A-ND 2 $146.19 $146.19 $146.19 $146.19 $146.19 $146.19 Buy
Analog Devices Inc DC1880A $147.12 $147.12 $147.12 $147.12 $147.12 $147.12 Buy
Mouser Electronics 584-DC1880A 14 1 $152.26 $152.26 $152.26 $152.26 $152.26 $152.26 Buy
