DC1887A
Analog Devices Inc.

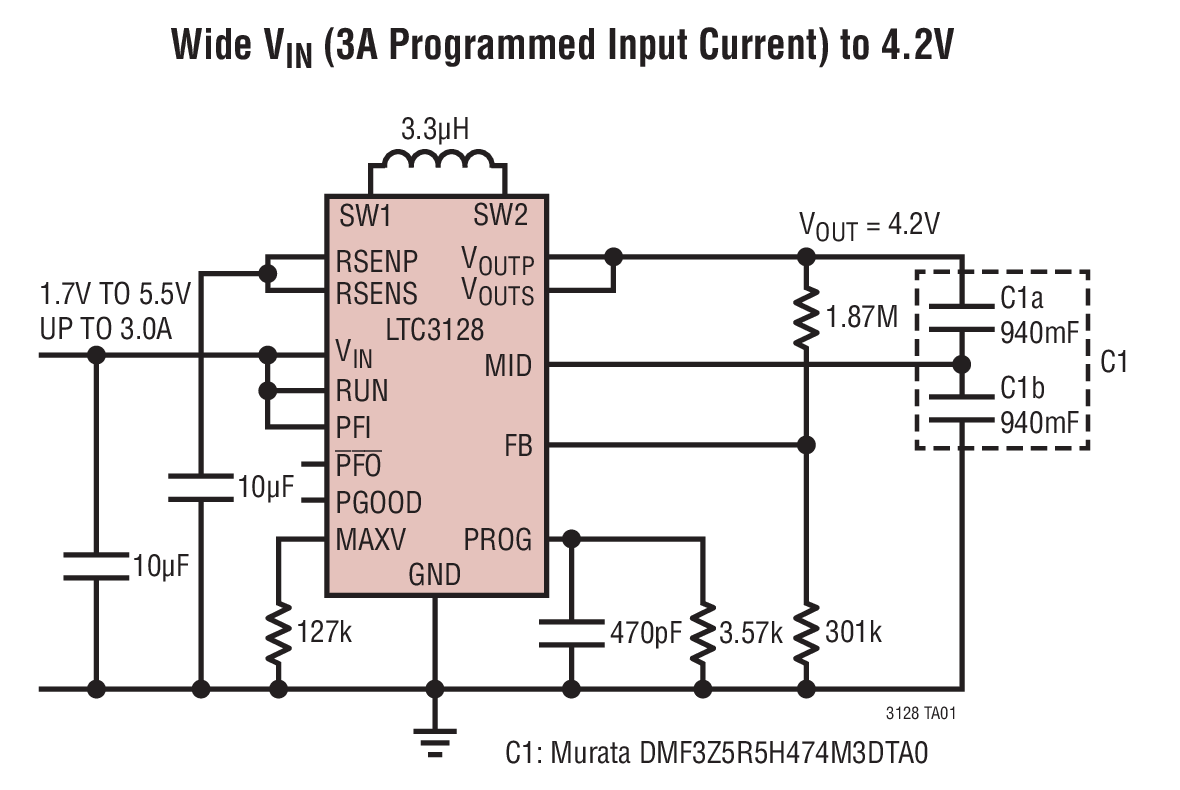

The LTC3128 is a highly efficient, buck-boost DC/DC supercapacitor charger. It operates efficiently from input voltages above, below or equal to the output voltage. The LTC3128 incorporates accurate programmable average input current limit, active charge balancing and programmable maximum capacitor voltage. This combination of features makes the LTC3128 ideal for safely charging and protecting large capacitors in backup power systems. The input current limit and maximum capacitor voltage are each programmed using a single resistor. Average input current is accurately controlled over a 0.5A to 3A programmable range while the individual maximum capacitor voltage can be set from 1.8V to 3.0V.Other features of the LTC3128 include <2?A quiescent current from VOUT in Burst Mode?operation, accurate power-good and power failure indicators, and thermal overload protection. The LTC3128 is offered in low profile, thermally enhanced 20-Lead 4mm ? 5mm ? 0.75mm QFN and 24-Lead TSSOP packages.Applications Supercapacitor Based Backup Power Memory Backup Servers, RAID, RF Systems Industrial, Communications, Computing
$176.55 - $183.61
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC1887A-ND | 1 | $174.58 | $174.58 | $174.58 | $174.58 | $174.58 | $174.58 | Buy | |
|
|
Analog Devices Inc | DC1887A | $176.55 | $176.55 | $176.55 | $176.55 | $176.55 | $176.55 | Buy | ||
|
 |
Arrow North American Components | DC1887A | 2 | 1 | $151.28 | $151.28 | $151.28 | $151.28 | $151.28 | $151.28 | Buy |
|
|
Mouser Electronics | 584-DC1887A | 2 | 1 | $182.71 | $182.71 | $182.71 | $182.71 | $182.71 | $182.71 | Buy |
|
|
Newark | DC1887A | 1 | $183.61 | $183.61 | $183.61 | $183.61 | $183.61 | $183.61 | Buy |
