LTC2374-16 Demo Board | 16-Bit, 2Msps, 8-Channel SAR ADC with 96dB SNR (Requires DC590, DC2026 or DC890)
Analog Devices Inc.

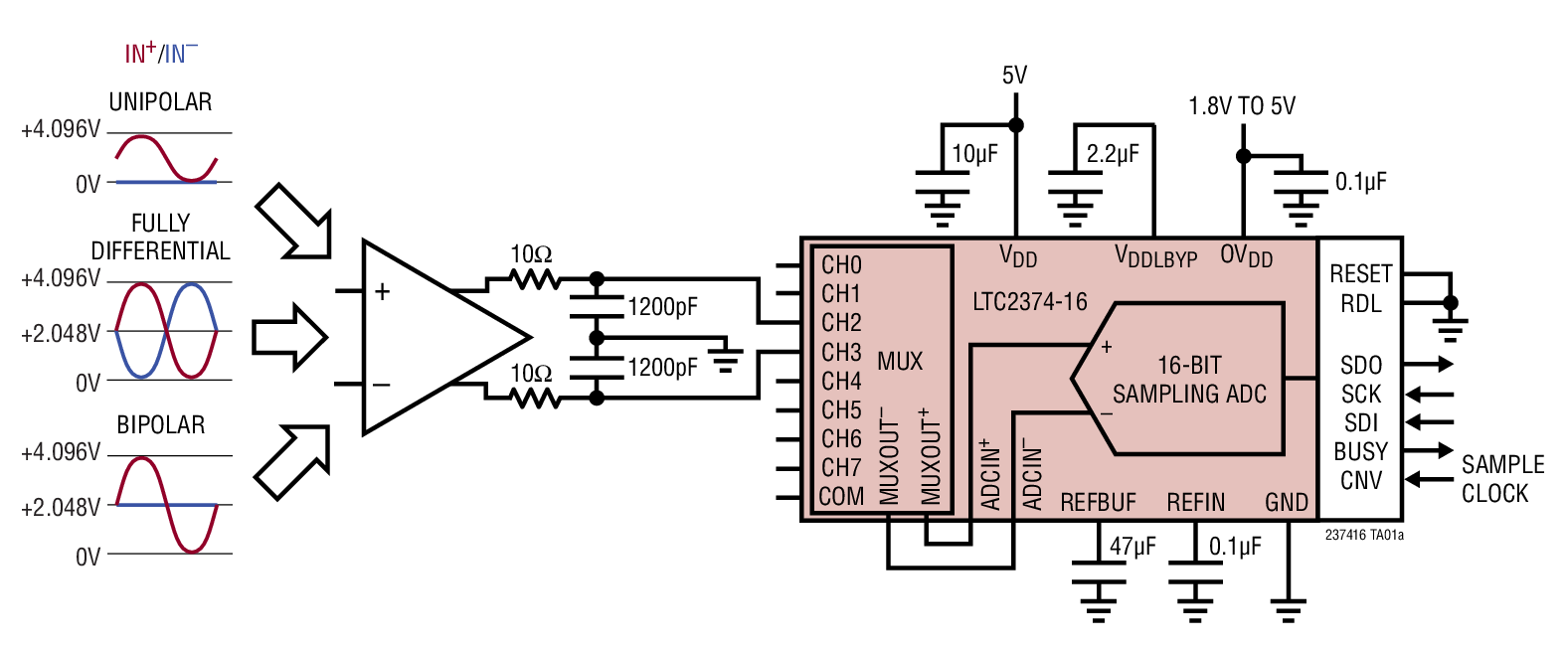

Demonstration circuit 2071A features the LTC2373 family. The LTC2374/LTC2373/LTC2372 are low noise, high speed, 8-channel, 16/18-bit successive approximation register (SAR) ADCs. The demo manual refers to the LTC2373-18 but applies to all parts in the family, the only differences being the number of bits and the maximum sample rate. Operating from a single 5V supply, the LTC2373-18 has a highly configurable, low crosstalk, 8-channel input multiplexer, supporting fully differential, pseudo-differential unipolar and pseudo-differential bipolar analog input ranges.
$176.55 - $182.71
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC2071A-C-ND | 2 | $174.58 | $174.58 | $174.58 | $174.58 | $174.58 | $174.58 | Buy | |
|
|
Analog Devices Inc | DC2071A-C | $176.55 | $176.55 | $176.55 | $176.55 | $176.55 | $176.55 | Buy | ||
|
|
Mouser Electronics | 584-DC2071A-C | 0 | 1 | $182.71 | $182.71 | $182.71 | $182.71 | $182.71 | $182.71 | Buy |
