DC2108A
Analog Devices Inc.

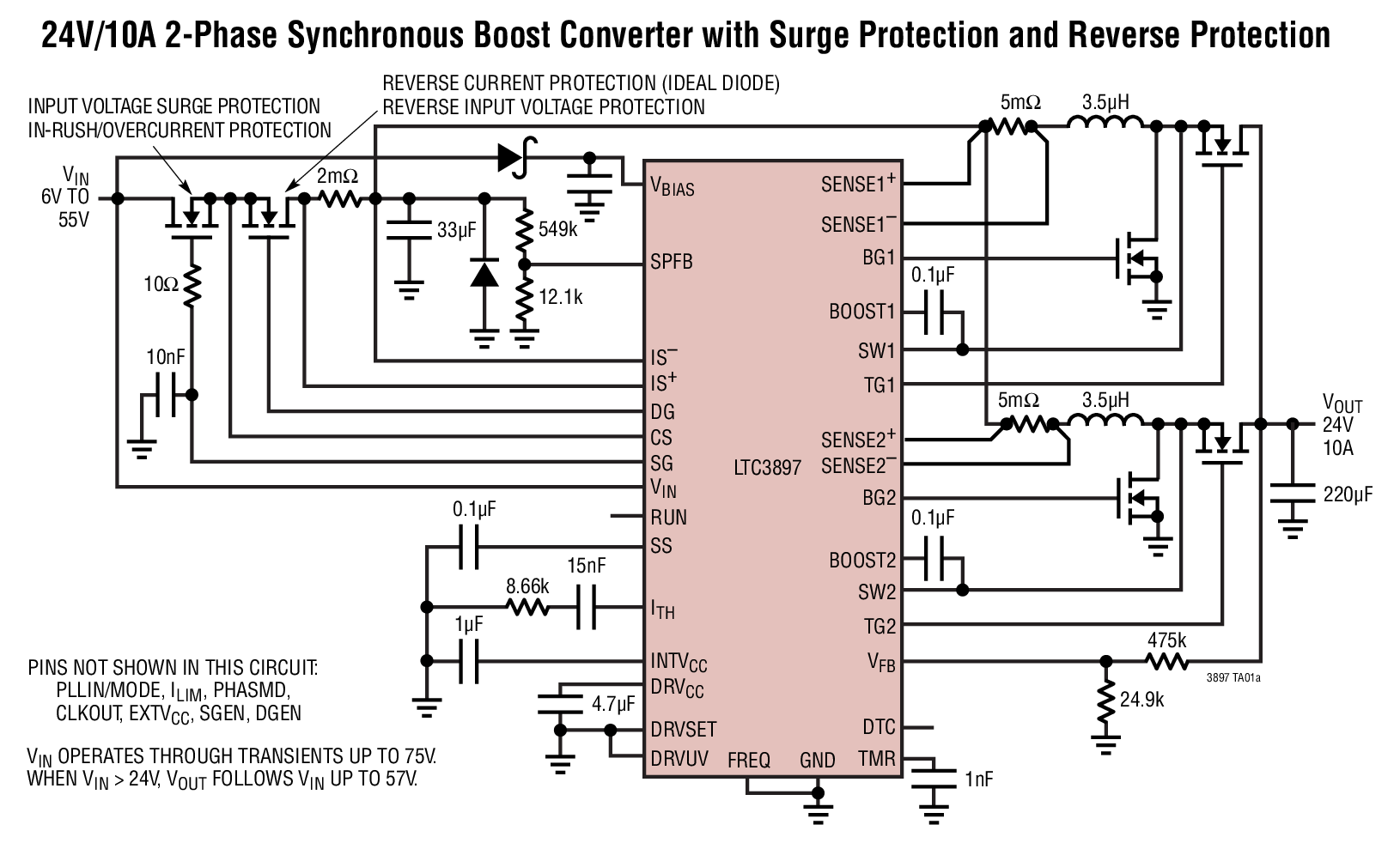

The LTC3897 is a synchronous boost DC/DC controller with surge stopper and ideal diode controller.The boost controller drives two N-channel power MOSFET stages out-of-phase to reduce input and output capacitor?requirements, allowing the use of smaller inductors than the single-phase equivalent. Synchronous rectification reduces power loss and eases thermal requirements.The surge stopper controls the gate of an external N-channel MOSFET to protect against high voltage input transients and provides in-rush current control, overcurrent protection and output disconnect for the boost converter. The integrated ideal diode controller drives another N-channel MOSFET to replace a Schottky diode for reverse input protection and voltage holdup or peak detection. It controls the forward voltage drop across the MOSFET and minimizes reverse current flow.The LTC3897 is available in thermally-enhanced 38-pin leadless QFN or 38-lead TSSOP packages.Applications Industrial Automotive Military/Avionics
$158.90 - $164.45
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 505-DC2108A-ND | 8 | $157.57 | $157.57 | $157.57 | $157.57 | $157.57 | $157.57 | Buy | |
|
|
Analog Devices Inc | DC2108A | $158.90 | $158.90 | $158.90 | $158.90 | $158.90 | $158.90 | Buy | ||
|
|
Mouser Electronics | 584-DC2108A | 3 | 1 | $164.45 | $164.45 | $164.45 | $164.45 | $164.45 | $164.45 | Buy |
