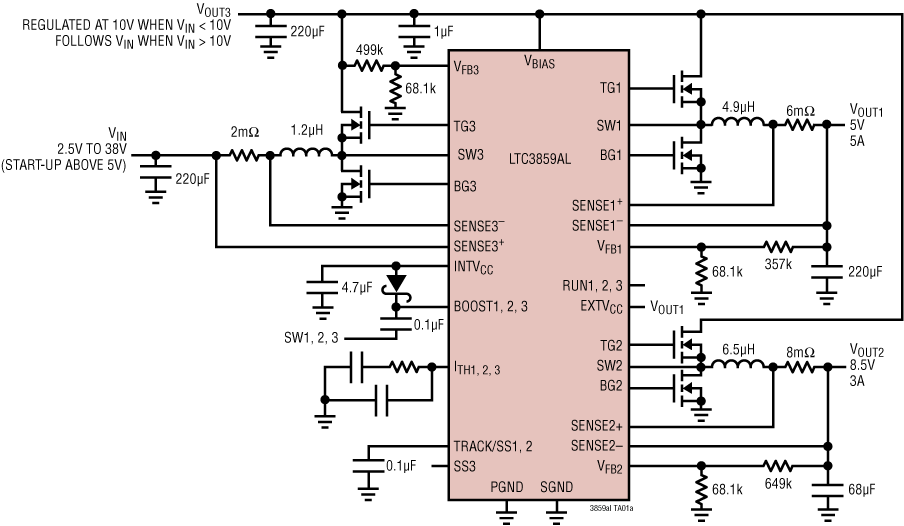

The LTC3859AL is a high performance triple output (buck/buck/boost) synchronous DC/DC switching regulator controller that drives all N-channel power MOSFET stages. Constant frequency current mode architecture allows a phase-lockable switching frequency of up to 850kHz. The LTC3859AL operates from a wide 4.5V to 38V input supply range. When biased from the output of the boost converter or another auxiliary supply, the LTC3859AL can operate from an input supply as low as 2.5V after start-up.The 28?A no-load quiescent current extends operating runtime in battery powered systems. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3859AL features a precision 0.8V reference for the bucks, 1.2V reference for the boost and a power good output indicator. The PLLIN/MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous inductor current mode at light loads.Compared to the LTC3859 and the LTC3859A, the LTC3859AL is fully pin-compatible, but with lower Burst Mode operation IQ (28?A with one channel on). Quiescent Current (Burst Mode) Notes LTC3859AL 28?A-One channel on, Buck 38?A-All three channels on Internal clamp on the INTVCC pin LTC3859A 55?A-One channel on, Buck 80?A-All three channels on Internal clamp on the INTVCC pin. For new designs, we recommend LTC3859AL LTC3859 55?A-One channel on, Buck 80?A-All three channels on For new designs, we recommend LTC3859AL Applications Automotive Always-On and Start-Stop Systems Battery Operated Digital Devices Distributed DC Power Systems Multioutput Buck-Boost Applications
