DC2297A-A
Analog Devices Inc.

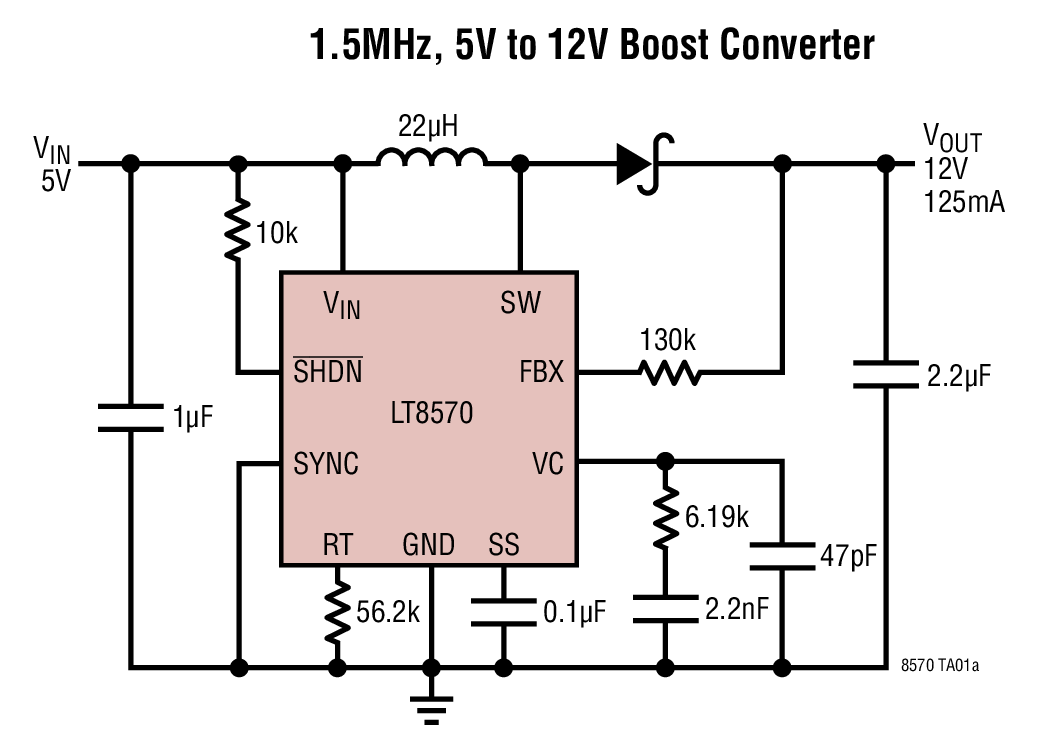

The LT8570 and LT8570-1 are PWM DC/DC converters. The LT8570 contains a 0.5A, 65V power switch, while the LT8570-1 contains a 0.25A, 65V power switch. The LT8570 and LT8570-1 can be configured as either a boost, SEPIC or inverting converter.The LT8570/LT8570-1 have an adjustable oscillator, set by a resistor from the RT pin to ground. Additionally, the LT8570/LT8570-1 can be synchronized to an external clock. The switching frequency of the part may be free running or synchronized, and can be set between 200kHz and 1.5MHz.The LT8570/LT8570-1 also feature innovative SHDN pin circuitry that allows for slowly varying input signals and an adjustable undervoltage lockout function.Additional features such as frequency foldback and softstart are integrated. The LT8570/LT8570-1 are available in tiny thermally enhanced 3mm ? 3mm 8-lead DFN and 8-lead MSOP packages.Applications VFD Bias Supplies TFT-LCD Bias Supplies GPS Receivers DSL Modems Local Power Supply
$158.90 - $164.45
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC2297A-A-ND | 2 | $157.57 | $157.57 | $157.57 | $157.57 | $157.57 | $157.57 | Buy | |
|
|
Analog Devices Inc | DC2297A-A | $158.90 | $158.90 | $158.90 | $158.90 | $158.90 | $158.90 | Buy | ||
|
|
Mouser Electronics | 584-DC2297A-A | 0 | 1 | $164.45 | $164.45 | $164.45 | $164.45 | $164.45 | $164.45 | Buy |
