LTC2353-16 Demo Board | Buffered Dual, 18-Bit, 550ksps Simultaneous Sampling SAR ADC (Requires DC590, DC2026 or DC890)
Analog Devices Inc.

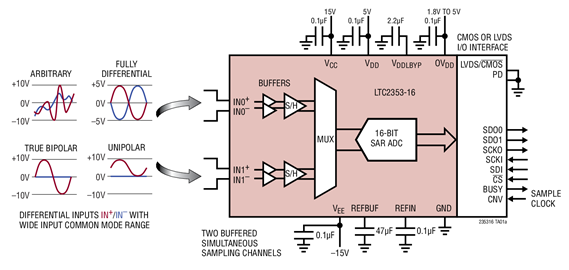

Demonstration circuit 2365A highlights the LTC2358 family of buffered input ADCs. The LTC2358/LTC2357/LTC2353/LTC2333 are low noise, high speed, 16-/18- bit successive approximation register (SAR) ADCs with integrated front end buffers. These ADCs accept a wide common mode range. Pico-amp inputs and high CMRR enable these ADCs to connect directly to a wide range of sensors without compromising measurement accuracy. The following text refers to the LTC2358-18 but applies to all parts in the family, the only differences being the number of bits, number of channels and the maximum sample rate. The LTC2358-18 has a flexible SoftSpan™ interface that allows conversion-by-conversion control of the input voltage span on a per-channel basis. An internal 2.048V reference and 2X buffer simplify basic operation while an external reference can be used to increase the input range and the SNR of the ADC.
$176.55 - $182.71
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC2365A-G-ND | 1 | $174.58 | $174.58 | $174.58 | $174.58 | $174.58 | $174.58 | Buy | |
|
|
Analog Devices Inc | DC2365A-G | $176.55 | $176.55 | $176.55 | $176.55 | $176.55 | $176.55 | Buy | ||
|
|
Mouser Electronics | 584-DC2365A-G | 2 | 1 | $182.71 | $182.71 | $182.71 | $182.71 | $182.71 | $182.71 | Buy |
