DC2554A-A-KIT
Analog Devices Inc.

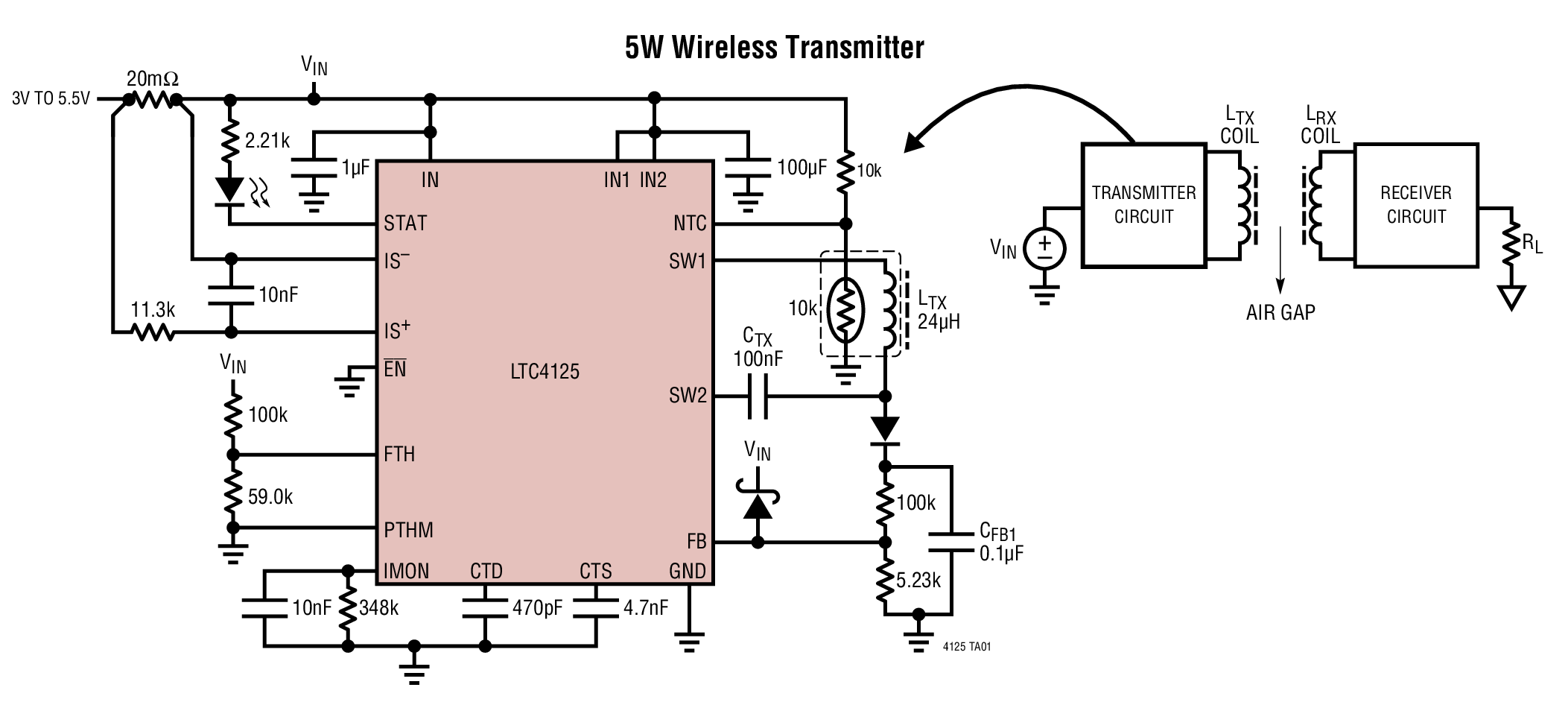

The LTC4125 is a simple and high performance monolithic full bridge resonant driver capable of delivering over 5W of power wirelessly to a properly tuned receiver. The device controls the current flow in a series connected transmit coil LC network to create a simple, safe and versatile wireless power transmitter.The LTC4125 automatically adjusts its driving frequency to match the LC network resonant frequency. This AutoResonant switching allows the device to deliver maximum power from a low voltage input supply (3V to 5.5V) to a tuned receiver. To optimize system efficiency, the LTC4125 employs a periodic transmit power search and adjusts the transmission power based on the receiver load requirements. The device stops delivering power during a fault condition, or if a foreign object is detected.The LTC4125 also includes a programmable maximum average input current limit and an NTC input as additional means for foreign object and overload protection. The LTC4125 is available in a 20-lead low profile (0.75mm) 4mm ? 5mm QFN package.Applications Hermetically and/or Electrically Insulated Devices Military Sensors and Devices Medical Equipment Industrial Handhelds
$105.92 - $110.16Distributors
Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
DigiKey | 505-DC2554A-A-KIT-ND | 0 | $106.17 | $106.17 | $106.17 | $106.17 | $106.17 | $106.17 | Buy | |||
Analog Devices Inc | DC2554A-A-KIT | $105.92 | $105.92 | $105.92 | $105.92 | $105.92 | $105.92 | Buy | ||||
Mouser Electronics | 584-DC2554A-A-KIT | 3 | 1 | $109.62 | $109.62 | $109.62 | $109.62 | $109.62 | $109.62 | Buy | ||
Newark | DC2554A-A-KIT | 1 | $110.16 | $110.16 | $110.16 | $110.16 | $110.16 | $110.16 | Buy |
