EVAL-LTC2065-TQFN
Analog Devices Inc.

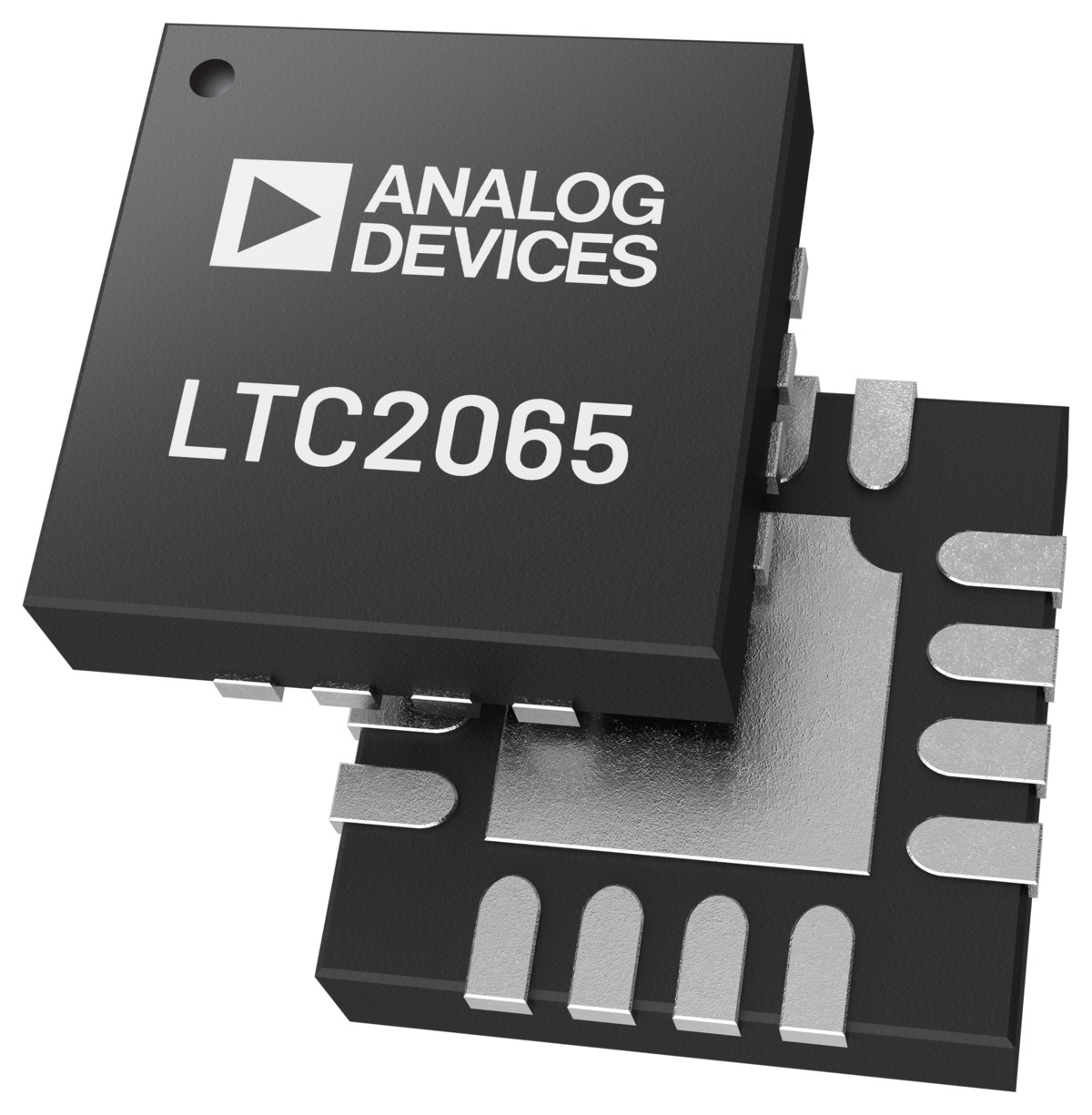

The LTC2063/LTC2064/LTC2065 are single, dual, and quad low power, zero-drift, 20kHz amplifiers. The LTC2063/LTC2064/LTC2065 enable high resolution measurement at extremely low power levels.Typical supply current is 1.4?A per amplifier with a maximum of 2?A. The available shutdown mode has been optimized to minimize power consumption in duty-cycled applications and features low charge loss during power-up, reducing total system power.The LTC2063/LTC2064/LTC2065?s self-calibrating circuitry results in very low input offset (5?V max) and offset drift (0.02?V/?C). The maximum input bias current is only 20pA and does not exceed 100pA over the full specified temperature range. The extremely low input bias current of the LTC2063/LTC2064/LTC2065 allows the use of high value power-saving resistors in the feedback network.With its ultralow quiescent current and outstanding precision, the LTC2063/LTC2064/LTC2065 can serve as a signal chain building block in portable, energy harvesting and wireless sensor applications.The LTC2063 is available in 6-lead SC70 and 5-lead TSOT-23 packages. The LTC2064 is available in 8-lead MSOP and 10-lead DFN packages. The LTC2065 is available in 14-lead TSSOP and 16-lead 3mm ? 3mm QFN packages. These devices are fully specified over the ?40?C to 85?C and ?40?C to 125?C temperature ranges.Applications Signal Conditioning in Wireless Mesh Networks Portable Instrumentation Systems Low-Power Sensor Conditioning Gas Detection Temperature Measurement Medical Instrumentation Energy Harvesting Applications Low Power Current Sensing
* $41.65 - * $44.25Distributors
Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
DigiKey | 161-EVAL-LTC2065-TQFN-ND | 0 | $43.19 | $43.19 | $43.19 | $43.19 | $43.19 | $43.19 | Buy | |||
Analog Devices Inc | EVAL-LTC2065-TQFN | $41.92 | $41.92 | $41.92 | $41.92 | $41.92 | $41.92 | Buy | ||||
element14 APAC | EVAL-LTC2065-TQFN | 2 | 1 | * $44.25 | * $44.25 | * $44.25 | * $44.25 | * $44.25 | * $44.25 | Buy | ||
Farnell | EVAL-LTC2065-TQFN | 2 | 1 | * $41.65 | * $36.45 | * $36.45 | * $36.45 | * $36.45 | * $36.45 | Buy | ||
Mouser Electronics | 584-EVALLTC2065-TQFN | 2 | 1 | $43.39 | $43.39 | $43.39 | $43.39 | $43.39 | $43.39 | Buy | ||
Newark | EVAL-LTC2065-TQFN | 2 | 1 | $43.74 | $43.74 | $43.74 | $43.74 | $43.74 | $43.74 | Buy |
