ADS8382IBRHPT
Texas Instruments
Category: Data Converters
ADS8382 18-Bit 600KSPS Serial ADC with Ref and Pseudo Bipolar, Fully Differential Input
$27.72 - $40.83
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-17519-6-ND | 0 | $40.83 | $34.37 | $32.82 | $27.99 | $28.39 | $28.39 | Buy | |
|
 |
Arrow North American Components | ADS8382IBRHPT | 0 | 250 | $22.29 | $22.29 | $22.29 | $22.29 | $24.79 | $26.97 | Buy |
|
 |
AVNET Europe | ADS8382IBRHPT | 250 | * $29.87 | * $26.35 | Buy | |||||
|
|
AVNET Express | ADS8382IBRHPT | 17 | 1 | $27.97 | $27.40 | $26.88 | $26.88 | Buy | ||
|
|
Mouser Electronics | 595-ADS8382IBRHPT | 224 | 1 | $37.11 | $34.62 | $32.14 | $30.07 | $27.57 | $26.70 | Buy |
|
|
Texas Instruments | ADS8382IBRHPT | 1220 | 1 | $31.41 | $31.41 | $31.41 | $27.92 | $20.53 | $20.53 | Buy |
|
|
Verical Marketplace | ADS8382IBRHPT | 7500 | 250 | $0.00 | $0.00 | $0.00 | $0.00 | $25.60 | $25.60 | Buy |
|
|
Win Source | ADS8382IBRHPT | 4200 | 2 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| # Input Channels | 1 |
| Analog Voltage AVDD(Max)(V) | 5.25 |
| Analog Voltage AVDD(Min)(V) | 4.75 |
| Approx. Price (US$) | 16.50 | 1ku |
| Architecture | SAR |
| Digital Supply(Max)(V) | 5.25 |
| Digital Supply(Min)(V) | 2.7 |
| INL(Max)(+/-LSB) | 3 |
| Input Range(Max)(V) | 4.096 |
| Input Range(Min)(V) | 0 |
| Input Type | Differential |
| Integrated Features | Oscillator |
| Multi-Channel Configuration | N/A |
| Operating Temperature Range(C) | -40 to 85 |

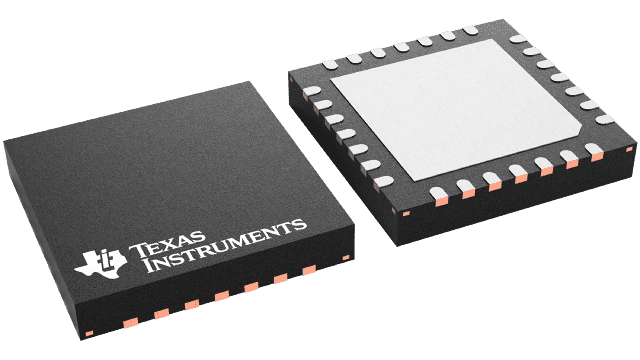

| Package Group | VQFN |
| Package Size | mm2 |
| Power Consumption(Typ)(mW) | 115 |
| Rating | Catalog |
| Reference Mode | Ext,Int |
| Resolution(Bits) | 18 |
| SINAD(dB) | 96 |
| SNR(dB) | 96 |
| Sample Rate (max)(SPS) | 600kSPS |
| THD(Typ)(dB) | -116 |
