Analog Devices Inc.

Category: Data Converters

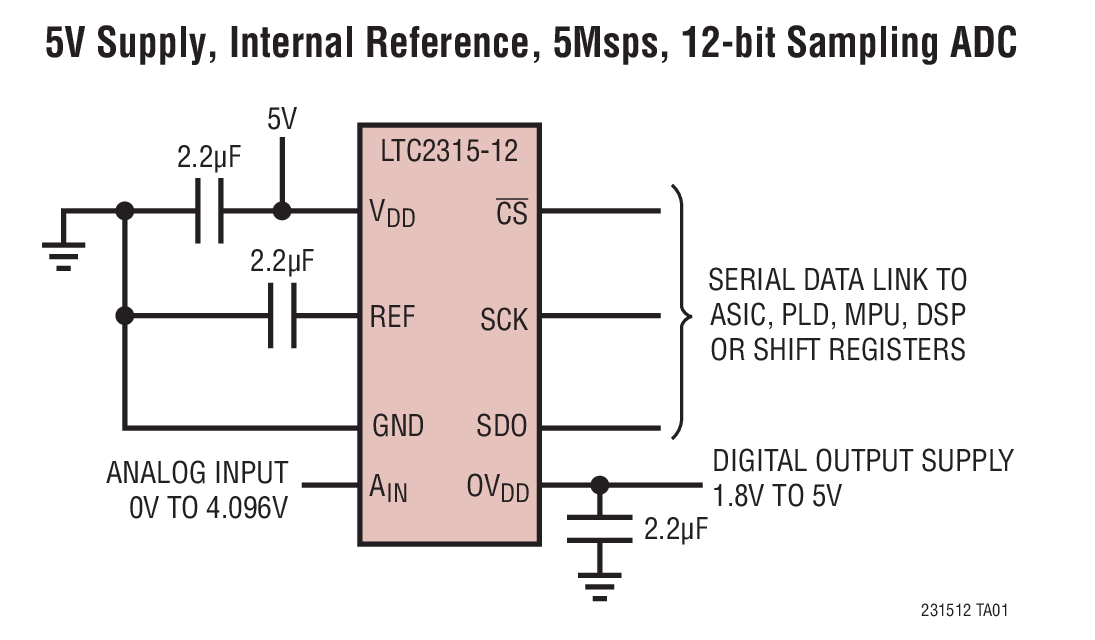

The LTC2315-12 is a 12-bit, 5Msps, serial sampling A/D converter that draws only 6.4mA from a wide range analog supply adjustable from 2.7V to 5.25V. The LTC2315-12 contains an integrated bandgap and reference buffer which provide a low cost, high performance (20ppm/°C max) and space saving applications solution. The LTC2315-12 achieves outstanding AC performance of 72.6dB SINAD and –84dB THD while sampling a 500kHz input frequency. The extremely high sample rate-to-power ratio makes the LTC2315-12 ideal for compact, low power, high speed systems. The LTC2315-12 also provides both nap and sleep modes for further optimization of the device power within a system.The LTC2315-12 has a high-speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3V and 5V logic. The fast 5Msps throughput makes the LTC2315-12 ideally suited for a wide variety of high speed applications. Complete 14-/12-Bit Pin-Compatible SAR ADC Family 500ksps 2.5Msps 4.5Msps 5Msps 14-Bit LTC2312-14 LTC2313-14 LTC2314-14 12-Bit LTC2312-12 LTC2313-12 LTC2315-12 Power 3V/5V 9mW/15mW 14mW/25mW 18mW/31mW 19mW/32mW Applications Communication Systems High Speed Data Acquisition Handheld Terminal Interface Medical Imaging Uninterrupted Power Supplies Battery Operated Systems Automotive

$58.85 - $60.89
