DRV3201QPAPQ1
Texas Instruments
Category: Power Management ICs
DRV3201-Q1 3 Phase Motor Driver-IC for Automotive Safety Applications
$5.14 - $18.97
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-44144-ND | 197 | $9.67 | $7.54 | $7.57 | $5.62 | $4.30 | $4.06 | Buy | |
|
 |
Arrow North American Components | DRV3201QPAPQ1 | 0 | 160 | $4.17 | $5.25 | $5.25 | $4.18 | $3.64 | $4.74 | Buy |
|
 |
AVNET Europe | DRV3201QPAPQ1 | 160 | * $4.47 | * $4.21 | Buy | |||||
|
|
AVNET Express | DRV3201QPAPQ1 | 152 | 1 | $5.08 | $4.77 | $4.77 | Buy | |||
|
|
Mouser Electronics | 595-DRV3201QPAPQ1 | 153 | 1 | $9.62 | $7.50 | $6.92 | $6.78 | $6.78 | $6.78 | Buy |
|
|
Texas Instruments | DRV3201QPAPQ1 | 2691 | 1 | $8.71 | $8.71 | $8.71 | $7.60 | $5.24 | $5.24 | Buy |
|
|
Verical Marketplace | DRV3201QPAPQ1 | 9920 | 160 | $5.81 | $5.81 | $4.81 | $4.01 | $0.00 | Buy | |
|
|
Win Source | DRV3201QPAPQ1 | 2400 | 3 | $18.97 | $18.97 | $18.97 | $18.97 | $18.97 | $18.97 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| # of half-bridges | 3 |
| Additional Features | Automotive Qualified,VDS Monitoring,Sleep Mode,Over Voltage Protection,Under Voltage Protection,3-Phase Comparator,Shoot-Through Protection,Failure Detection |
| Control I/F | 6x direct predriver control inputs, SPI |
| Current Sense Amps | 2 |
| Gate Drive(A) | 1 |
| Operating Temperature Range(C) | -40 to 125 |

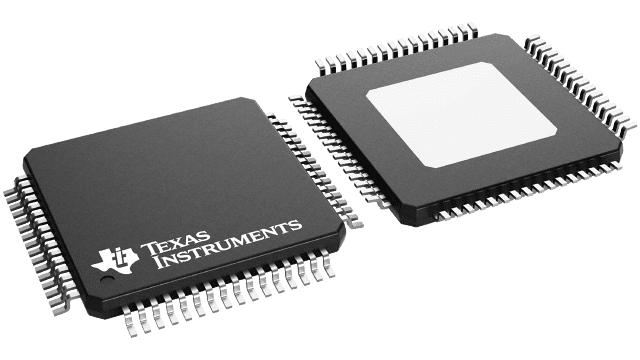

| Package Group | HTQFP |
| Package Size | mm2 |
| Rating | Automotive |
| Vs ABS(Max)(V) | 40 |
| Vs ABS(Min)(V) | -0.3 |
| Vs(Max)(V) | 38 |
| Vs(Min)(V) | 4.75 |
