DS75LVU+

Analog Devices Inc.

Category: Temperature Sensors

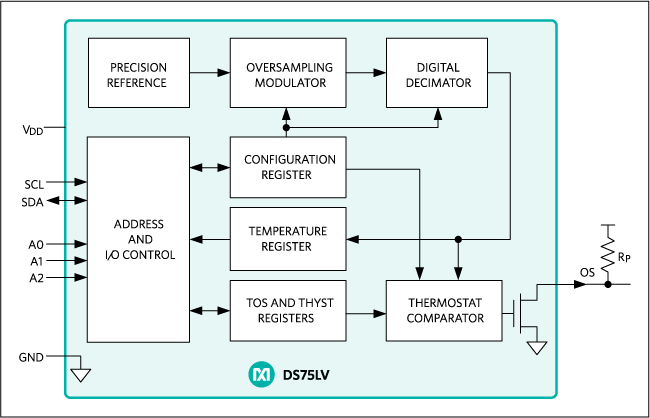

The DS75LV low-voltage (1.7V to 3.7V) digital thermometer and thermostat provides 9-, 10-, 11-, or 12-bit digital temperature readings over a -55°C to +125°C range with ±2°C accuracy over a -25°C to +100°C range. At power-up, the DS75LV defaults to 9-bit resolution for software compatibility with the LM75. Communication with the DS75LV is achieved through a simple 2-wire serial interface. The DS75LV thermostat has a dedicated open-drain output (O.S.) and programmable fault tolerance, which allows the user to define the number of consecutive error conditions that must occur before O.S is activated. There are two thermostatic operating modes that control thermostat operation based on user-defined trip-points (TOS and THYST).ApplicationsAny Thermally Sensitive SystemCellular Base StationsOffice EquipmentPersonal Computers

* $3.63 - * $3.56

Distributors

Currency:
Distributor SKU Stock MOQ 1 10 50 100 1000 10000 Purchase
element14 APAC DS75LVU+ 334 1 * $3.08 * $2.43 * $2.39 * $2.22 * $2.05 * $2.05 Buy
Farnell DS75LVU+ 334 1 * $3.63 * $2.55 * $2.51 * $2.48 * $2.31 * $2.31 Buy
Mouser Electronics 700-DS75LVU 2050 1 $2.89 $2.27 $2.27 $2.10 $1.78 $1.78 Buy

Technical Specifications

ROHS Compliance Compliant
