LM3631YFFR
Texas Instruments
Category: Drivers and Interfaces
LM3631 Integrated WLED Backlight Driver and Bias Power for LCD panels
$1.02 - $2.75
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 2156-LM3631YFFR-ND | 189000 | $2.75 | $2.40 | $2.27 | $1.81 | $1.22 | $1.21 | Buy | |
|
 |
Arrow North American Components | LM3631YFFR | 0 | 3000 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $1.12 | Buy |
|
|
AVNET Express | LM3631YFFR | 27000 | 1 | $1.32 | $1.27 | Buy | ||||
|
|
Mouser Electronics | 595-LM3631YFFR | 0 | 3000 | $1.20 | Buy | |||||
|
|
Texas Instruments | LM3631YFFR | 14859 | 1 | $1.87 | $1.87 | $1.87 | $1.64 | $0.92 | $0.92 | Buy |
|
|
Utsource | LM3631YFFR | 10000 | $1.02 | $0.92 | $0.92 | $0.92 | Buy | |||
|
|
Verical Marketplace | LM3631YFFR | 9000 | 3000 | $1.19 | $1.19 | $1.19 | $1.19 | $1.19 | $1.11 | Buy |
|
|
Win Source | LM3631YFFR | 5780 | 35 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 1.20 | 1ku |
| Channels(#) | 2 |
| Duty Cycle(Max)(%) | 94 |
| LED Current Per Channel(mA) | 25 |
| LED(#) | 16 |
| Operating Temperature Range(C) | -40 to 85 |

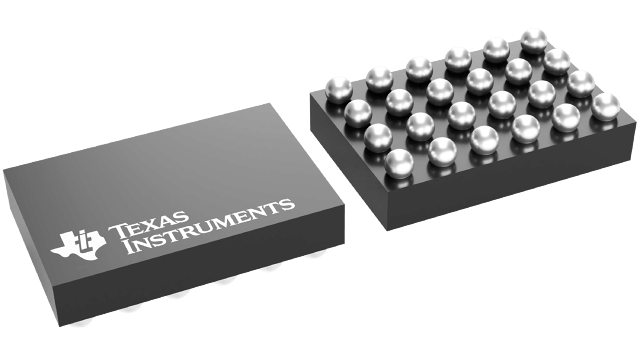

| Package Group | DSBGA |
| Package Size | mm2 |
| Peak Efficiency(%) | 90 |
| Rating | Catalog |
| Shutdown Current(Typ)(uA) | 1 |
| Special Features | Adjustable Switch Frequency,CABC,Enable/Shutdown,I2C Control,OVP,PWM Control,Power Good,Soft Start |
| Switching Frequency(Max)(kHz) | 1100 |
| Topology | Boost,Current Sink,LDO,Multi-Channel |
| Type | Inductive |
| Vin(Max)(V) | 5.0 |
| Vin(Min)(V) | 2.7 |
| Vout(Max)(V) | 30 |
| Vout(Min)(V) | 0 |
