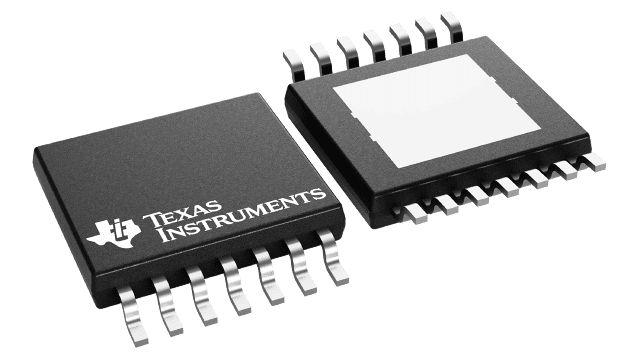

LM5010AQ1MH/NOPB
Texas Instruments
Category: Power Management ICs
LM5010A-Q1 Automotive Grade 0 and 1, 6-75V Wide Vin, 1A Constant On-Time Non-Synchronous Buck Regulator
$2.52 - $38.64
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | LM5010AQ1MH/NOPB-ND | 0 | $1.00 | $4.28 | $4.05 | $3.33 | $2.39 | $2.23 | Buy | |
|
|
Ameya360 | LM5010AQ1MH/NOPB | 282 | $3.11 | $3.11 | Buy | |||||
|
 |
Arrow North American Components | LM5010AQ1MH/NOPB | 0 | 188 | $2.72 | $2.72 | $2.72 | $2.43 | $2.92 | $2.85 | Buy |
|
 |
AVNET Europe | LM5010AQ1MH/NOPB | 282 | 94 | * $3.15 | * $2.45 | * $2.45 | Buy | |||
|
|
AVNET Express | LM5010AQ1MH/NOPB | 3910 | 126 | $2.52 | Buy | |||||
|
|
Mouser Electronics | 926-LM5010AQ1MH/NOPB | 2197 | 1 | $5.43 | $4.88 | $4.88 | $4.00 | $2.68 | $2.64 | Buy |
|
|
Perceptive | LM5010AQ1MH/NOPB | 4673 | 1+ | Buy | ||||||
|
|
RS Components | LM5010AQ1MH/NOPB | $38.64 | Buy | |||||||
|
|
RS Components (APAC) | LM5010AQ1MH/NOPB | $8.42 | Buy | |||||||
|
|
Texas Instruments | LM5010AQ1MH/NOPB | 10561 | 1 | $4.00 | $4.00 | $4.00 | $3.50 | $1.98 | $1.98 | Buy |
|
|
Verical Marketplace | LM5010AQ1MH/NOPB | 3572 | 188 | $3.73 | $3.73 | $3.73 | $3.73 | $2.49 | $0.00 | Buy |
|
|
Win Source | LM5010AQ1MH/NOPB | 25000 | 14 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 1.75 | 1ku |
| Control Mode | Constant on-time (COT) |
| Duty Cycle(Max)(%) | 99 |
| Iout(Max)(A) | 1 |
| Iq(Typ)(mA) | 0.65 |
| Operating Temperature Range(C) | -40 to 125,-40 to 150 |
| Package Group | HTSSOP |
| Rating | Automotive |
| Regulated Outputs(#) | 1 |
| Special Features | Enable |
| Switching Frequency(Max)(kHz) | 1000 |
| Switching Frequency(Min)(kHz) | 50 |
| Type | Converter |
| Vin(Max)(V) | 75 |
| Vin(Min)(V) | 6 |
| Vout(Max)(V) | 70 |
| Vout(Min)(V) | 2.5 |
