LM536013QDSXTQ1
Texas Instruments
Category: Power Management ICs

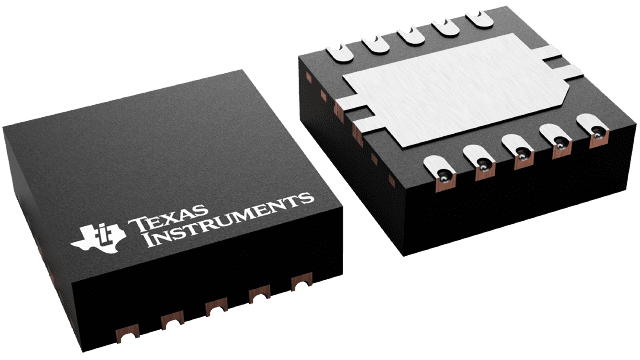

Conv DC-DC Single Step Down 3.55V 36V 10-Pin WSON EP T/R
$0.00 - $9.60
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 2156-LM536013QDSXTQ1-ND | 0 | 1 | $6.20 | $5.57 | $5.27 | $4.56 | $3.53 | $2.32 | Buy |
|
 |
Arrow North American Components | LM536013QDSXTQ1 | 0 | 250 | $2.33 | $2.33 | $2.33 | $2.33 | $5.33 | $5.09 | Buy |
|
 |
AVNET Asia Pacific | LM536013QDSXTQ1 | 250 | $2.57 | Buy | ||||||
|
 |
AVNET Europe | LM536013QDSXTQ1 | 250 | * $2.80 | * $2.47 | Buy | |||||
|
|
AVNET Express | LM536013QDSXTQ1 | 1323 | 1 | $2.85 | $2.80 | Buy | ||||
|
|
element14 APAC | LM536013QDSXTQ1 | 83 | 1 | * $5.59 | * $3.94 | * $3.71 | * $3.58 | * $3.58 | * $3.58 | Buy |
|
 |
Farnell | LM536013QDSXTQ1 | 83 | 1 | * $6.37 | * $4.91 | * $4.47 | * $4.25 | * $4.25 | * $4.25 | Buy |
|
|
Mouser Electronics | 595-LM536013QDSXTQ1 | 2743 | 1 | $6.12 | $5.19 | $5.19 | $4.50 | $3.30 | $3.07 | Buy |
|
|
Newark | LM536013QDSXTQ1 | 83 | 1 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | Buy |
|
|
RS Components | LM536013QDSXTQ1 | $9.60 | Buy | |||||||
|
|
Texas Instruments | LM536013QDSXTQ1 | 92918 | 1 | $4.06 | $4.06 | $4.06 | $3.31 | $2.21 | $2.21 | Buy |
|
|
Verical Marketplace | LM536013QDSXTQ1 | 250 | 250 | $2.66 | $2.48 | Buy | ||||
|
|
Win Source | LM536013QDSXTQ1 | 1070 | 1 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 1.72 | 1ku |
| Control Mode | Current Mode |
| Duty Cycle(Max)(%) | 98 |
| Iout(Max)(A) | 1 |
| Iq(Typ)(mA) | 0.023 |
| Operating Temperature Range(C) | -40 to 150 |
| Package Group | WSON |
| Rating | Automotive |
| Regulated Outputs(#) | 1 |
| Special Features | Enable,Frequency Synchronization,Light Load Efficiency,Power Good,Synchronous Rectification |
| Switching Frequency(Max)(kHz) | 2400 |
| Switching Frequency(Min)(kHz) | 1890 |
| Type | Converter |
| Vin(Max)(V) | 42 |
| Vin(Min)(V) | 3.5 |
| Vout(Max)(V) | 6 |
| Vout(Min)(V) | 3.2 |
