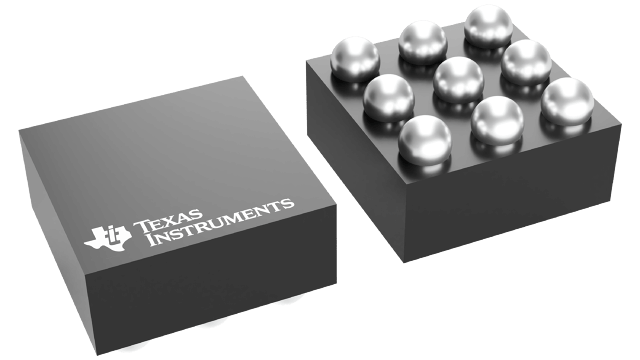

LP5524TMX-5/NOPB
Texas Instruments
Category: Drivers and Interfaces
LP5524 4 Channel LED Driver with Dual PWM Brightness Control
$0.40 - $0.85
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 2156-LP5524TMX-5/NOPB-ND | 24000 | $0.85 | $0.61 | $0.55 | $0.48 | $0.42 | $0.33 | Buy | |
|
 |
Arrow North American Components | LP5524TMX-5/NOPB | 450 | 1 | $0.83 | $0.69 | $0.69 | $0.53 | $0.28 | $0.28 | Buy |
|
 |
AVNET Asia Pacific | LP5524TMX-5/NOPB | 6000 | 3000 | $0.50 | Buy | |||||
|
 |
AVNET Europe | LP5524TMX-5/NOPB | 3000 | * $0.46 | Buy | ||||||
|
|
AVNET Express | LP5524TMX-5/NOPB | 42000 | 1 | $0.39 | $0.37 | Buy | ||||
|
|
Mouser Electronics | 926-LP5524TMX-5/NOPB | 3708 | 1 | $0.85 | $0.55 | $0.55 | $0.45 | $0.42 | $0.37 | Buy |
|
|
Texas Instruments | LP5524TMX-5/NOPB | 187869 | 1 | $0.63 | $0.63 | $0.63 | $0.52 | $0.28 | $0.28 | Buy |
|
|
Verical Marketplace | LP5524TMX-5/NOPB | 450 | 18 | $0.35 | $0.35 | $0.69 | $0.53 | $0.28 | $0.00 | Buy |
|
|
Win Source | LP5524TMX-5/NOPB | 13000 | 3 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 0.35 | 1ku |
| Channels(#) | 4 |
| Iout(Max)(A) | 0.1 |
| Iq(Typ)(mA) | 0.17 |
| LED Configuration | Parallel |
| LED Current Per Channel(mA) | 25 |
| LED(#) | 4 |
| Operating Temperature Range(C) | -40 to 85 |
| Package Group | DSBGA |
| Package Size | mm2 |
| Peak Efficiency(%) | 100 |
| Program Memory | No |
| Programmable Ramp Control | No |
| Rating | Catalog |
| Shutdown Current(Typ)(uA) | 0.2 |
| Special Features | Direct PWM Dimming |
| Topology | Linear |
| Vin(Max)(V) | 5.5 |
| Vin(Min)(V) | 2.7 |
| Vout(Max)(V) | 5.5 |
| Vout(Min)(V) | 2.7 |
