LP8555YFQR
Texas Instruments
Category: Drivers and Interfaces
LP8555 - High-Efficiency LED Backlight Driver for Tablet PCs
$1.27 - $3.09
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 2156-LP8555YFQR-ND | 155995 | $3.09 | $2.62 | $2.48 | $2.04 | $1.46 | $1.49 | Buy | |
|
 |
Arrow Asia | LP8555YFQR | 9000 | 3000 | $2.33 | Buy | |||||
|
 |
Arrow North American Components | LP8555YFQR | 0 | 3000 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $1.53 | Buy |
|
 |
AVNET Europe | LP8555YFQR | 3000 | * $1.68 | Buy | ||||||
|
|
AVNET Express | LP8555YFQR | 104995 | 1 | $1.65 | $1.59 | Buy | ||||
|
|
Mouser Electronics | 595-LP8555YFQR | 0 | 3000 | $1.49 | Buy | |||||
|
|
Texas Instruments | LP8555YFQR | 115728 | 1 | $2.33 | $2.33 | $2.33 | $2.04 | $1.16 | $1.16 | Buy |
|
|
Utsource | LP8555YFQR | 10000 | $1.27 | $1.21 | $1.21 | $1.21 | Buy | |||
|
|
Verical Marketplace | LP8555YFQR | 2691 | 10 | $0.89 | $0.87 | $0.86 | $0.82 | $1.40 | Buy | |
|
|
Win Source | LP8555YFQR | 10500 | 3 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 1.25 | 1ku |
| Channels(#) | 12 |
| Duty Cycle(Max)(%) | 100 |
| LED Current Per Channel(mA) | 50 |
| LED(#) | 96 |
| Operating Temperature Range(C) | -40 to 85 |

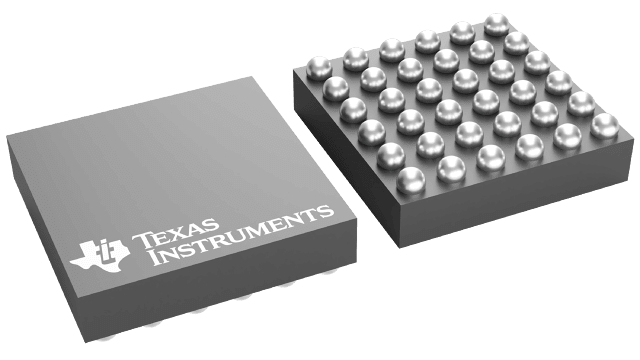

| Package Group | DSBGA |
| Package Size | mm2 |
| Peak Efficiency(%) | 93 |
| Rating | Catalog |
| Shutdown Current(Typ)(uA) | 3 |
| Special Features | Adjustable Switch Frequency,Analog/PWM Mixed Dimming,CABC,Edge Rate Control,I2C Control,Integrated Switch,OVP,PWM Control,Thermal Shutdown |
| Switching Frequency(Max)(kHz) | 1000 |
| Topology | Boost |
| Type | Inductive |
| Vin(Max)(V) | 20 |
| Vin(Min)(V) | 2.7 |
| Vout(Max)(V) | 28 |
| Vout(Min)(V) | 7 |
