Analog Devices Inc.

Category: RF and Microwave

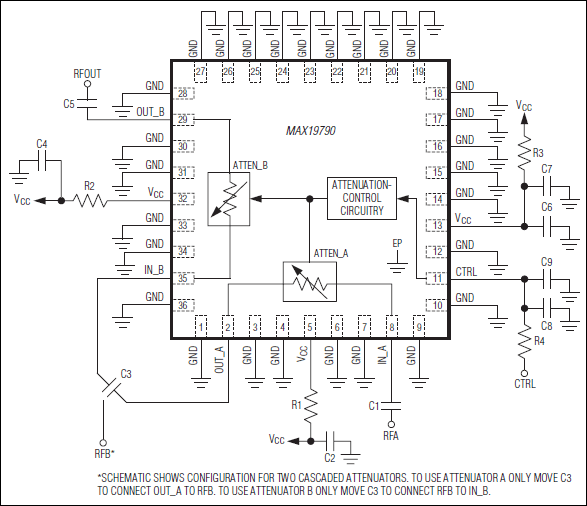

The MAX19790 is a dual, general-purpose analog voltage variable attenuator (VVA) designed to interface with 50Ω systems operating in the 250MHz to 4000MHz frequency range. Each attenuator includes a control circuit that provides 22dB of attenuation range with a linear control slope of 10dB/V.Both attenuators share a common analog control and can be cascaded together to yield 44dB of total dynamic range, with a combined linear control slope of 20dB/V.The IC is a monolithic device designed on one of Maxim's proprietary SiGe BiCMOS processes. The device operates from a single +5.0V supply and is available in a compact, 36-pin thin QFN package (6mm x 6mm x 0.8mm) with an exposed pad. Electrical performance is guaranteed over the extended -40°C to +85°C temperature range.ApplicationsAutomatic Level Control (ALC)Broadband System Applications, Including Wireless Infrastructure Digital and Spread-Spectrum Communication SystemsGeneral Test EquipmentLineup Gain TrimMicrowave Terrestrial LinksReceiver Gain ControlTemperature Compensation CircuitsTransmitter Gain ControlVSAT/Satellite ModemsWCDMA/LTE, TD-SCDMA/TD-LTE, WiMAX®, cdma2000®, GSM/EDGE and MMDS Base Stations

* $153.92 - $189.85
