MAX4534CUD+
Analog Devices Inc.
Category: Switches and Multiplexers

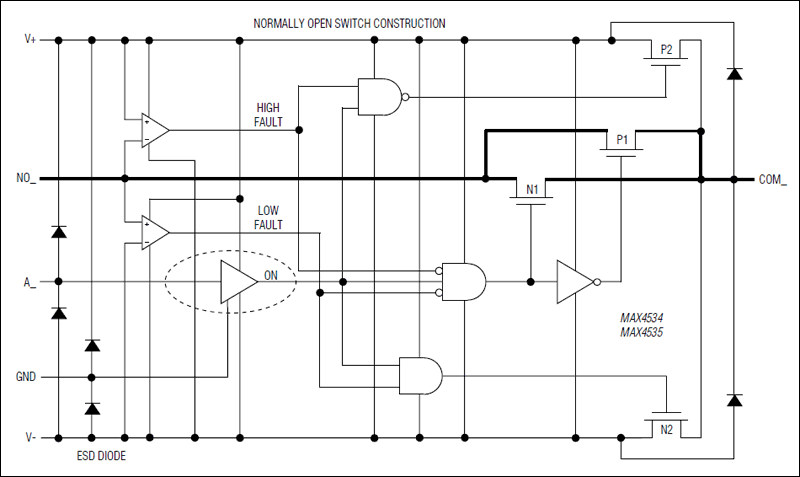

The MAX4534 (single 4-to-1) and MAX4535 (dual 2-to-1) fault-protected multiplexers operate with ±4.5V to±20V dual supplies or a +9V to +36V single supply.These multiplexers feature fault-protected inputs, rail-to-rail signal-handling capability, and overvoltageclamping at 150mV beyond the rails. Both parts feature±40V overvoltage protection with supplies off and ±25Vprotection with supplies on. On-resistance is 400Ω maxand is matched between channels to 10Ω max. All digitalinputs have TTL logic thresholds, ensuringTTL/CMOS-logic compatibility when using a single+12V or dual ±15V supplies.ApplicationsAvionicsData AcquisitionIndustrial and Process ControlRedundant/Backup SystemsSignal Routing
$4.10 - $13.86
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Analog Devices Inc | MAX4534CUD+ | $4.10 | $4.10 | Buy | ||||||
|
 |
element14 APAC | MAX4534CUD+ | 68 | 1 | * $10.29 | * $7.63 | * $7.63 | * $5.83 | * $5.27 | * $5.27 | Buy |
|
 |
Farnell | MAX4534CUD+ | 73 | 1 | * $8.31 | * $7.52 | * $7.52 | * $6.34 | * $5.94 | * $5.94 | Buy |
|
|
Mouser Electronics | 700-MAX4534CUD | 254 | 1 | $8.28 | $7.48 | $7.01 | $6.01 | $4.69 | $4.69 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
