MAX6955ATL+
Analog Devices Inc.
Category: Drivers and Interfaces

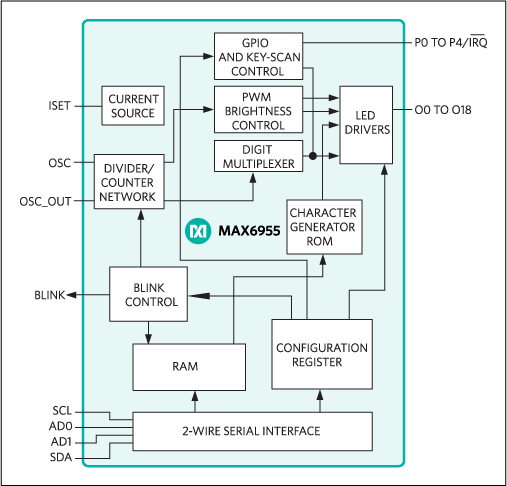

The MAX6955 is a compact display driver that interfaces microprocessors to a mix of 7-segment, 14-segment, and 16-segment LED displays through an I2C-compatible 2-wire serial interface. The MAX6955 drives up to 16 digits 7-segment, 8 digits 14-segment, 8 digits 16-segment, or 128 discrete LEDs, while functioning from a supply voltage as low as 2.7V. The driver includes five I/O expander or general-purpose I/O (GPIO) lines, some or all of which can be configured as a key-switch reader. The key-switch reader automatically scans and debounces a matrix of up to 32 switches.Included on chip are full 14- and 16-segment ASCII 104-character fonts, a hexadecimal font for 7-segment displays, multiplex scan circuitry, anode and cathode drivers, and static RAM that stores each digit. The maximum segment current for the display digits is set using a single external resistor. Digit intensity can be independently adjusted using the 16-step internal digital brightness control. The MAX6955 includes a low-power shutdown mode, a scan-limit register that allows the user to display from 1 to 16 digits, segment blinking (synchronized across multiple drivers, if desired), and a test mode, which forces all LEDs on. The LED drivers are slew-rate limited to reduce EMI.For an SPI-compatible version, refer to the MAX6954 data sheet. An evaluation kit (EV kit) for the MAX6955 is available.ApplicationsAudio/Video EquipmentBar Graph DisplaysPanel MetersSet-Top BoxesWhite Goods
$0.00 - $32.26Distributors
Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc | MAX6955ATL+ | $12.67 | $12.67 | Buy | ||||||||
element14 APAC | MAX6955ATL+ | 23 | 1 | * $28.90 | * $23.88 | * $21.72 | * $19.32 | * $18.16 | * $18.16 | Buy | ||
Farnell | MAX6955ATL+ | 5 | 50 | * $16.88 | * $16.88 | * $16.88 | * $16.88 | Buy | ||||
Mouser Electronics | 700-MAX6955ATL | 190 | 1 | $22.53 | $20.78 | $19.84 | $17.74 | $15.17 | $15.03 | Buy | ||
Newark | MAX6955ATL+ | 23 | 1 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | Buy |
Technical Specifications
ROHS Compliance | Compliant |
