MAX7310AUE+
Analog Devices Inc.
Category: Drivers and Interfaces

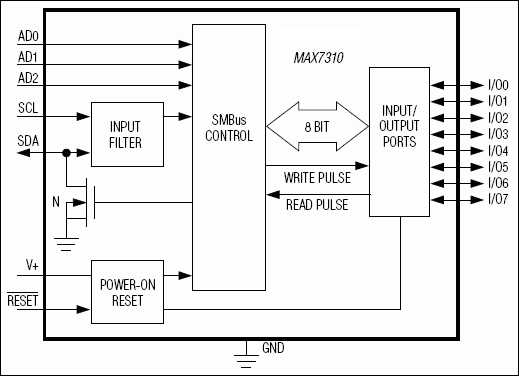

The MAX7310 provides 8-bit parallel input/output port expansion for SMBus-compatible and I²C-compatible applications. The MAX7310 consists of an input port register, an output port register, a polarity inversion register, a configuration register, a bus timeout register, and an SMBus/I²C-compatible serial interface. The system master can invert the MAX7310 input data by writing to the active-high polarity inversion register. The system master can enable or disable bus timeout by writing to the bus timeout register.Any of the eight I/O ports can be configured as input or output. An active-low reset input sets the eight I/Os as inputs. Three address-select pins configure one of 56 slave ID addresses.The MAX7310 is available in 16-pin thin QFN, TSSOP, and QSOP packages and is specified over the -40°C to +125°C automotive temperature range.ApplicationsCellular HandsetsDesktop Computers: MotherboardsGPIOIndustrial ControlIndustrial DisplaysInstrumentation and Test MeasurementMedical EquipmentRAID SystemsServersWhite LED Drivers
$2.50 - $10.22
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Analog Devices Inc | MAX7310AUE+ | $2.50 | $2.50 | Buy | ||||||
|
 |
element14 APAC | MAX7310AUE+ | 106 | 1 | * $8.21 | * $6.10 | * $6.10 | * $4.24 | * $4.00 | * $4.00 | Buy |
|
 |
Farnell | MAX7310AUE+ | 106 | 1 | * $7.14 | * $5.81 | * $5.81 | * $3.98 | * $3.75 | * $3.75 | Buy |
|
|
Mouser Electronics | 700-MAX7310AUE | 116 | 1 | $7.10 | $5.77 | $5.09 | $3.96 | $3.56 | $3.56 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
