Analog Devices Inc.

Category: Magnetic Sensors

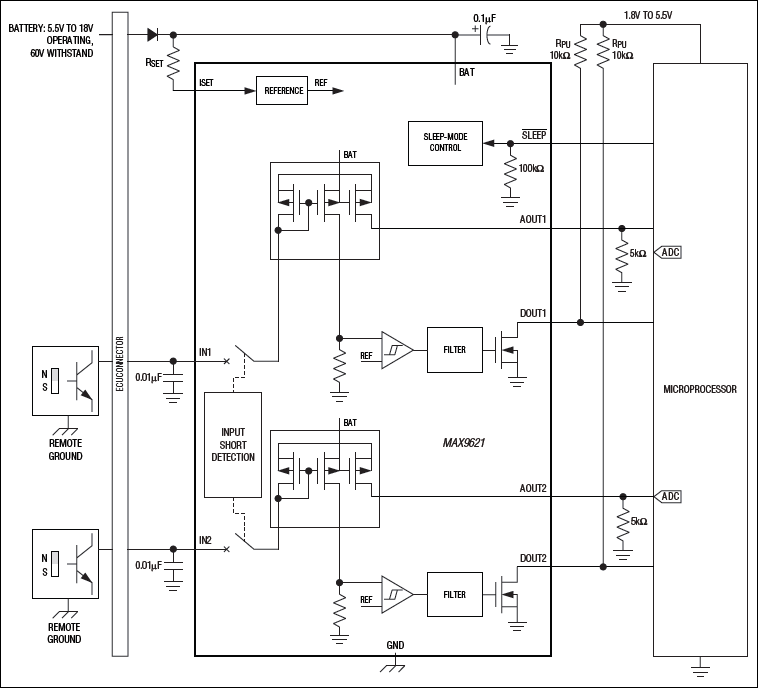

The MAX9621 is a continuation of the Maxim family of Hall-effect sensor interfaces that already includes the MAX9921. The MAX9621 provides a single-chip solution to interface two 2-wire Hall-effect sensors to low voltage microprocessors (µP) through either a digital output for Hall-effect switches or an analog output for linear information or both.The MAX9621 protects the Hall sensors from supply transients up to 60V at the BAT supply. Normal operating supply voltage ranges from 5.5V to 18V. If the BAT supply rises above 18V, the MAX9621 shuts off the current to the Hall sensors. When a short-to-ground fault condition is detected, the current to the Hall input is shut off and the condition is indicated at the analog output by a zero-current level and a high digital output.The MAX9621 provides a minimum of 50µs blanking time following Hall sensor power-up or restart. The open-drain digital outputs are compatible with logic levels up to 5.5V.The MAX9621 is available in a 3mm x 5mm, 10-pin µMAX® package and is rated for operation in the -40°C to +125°C temperature range.ApplicationsDoor Power LocksElectric SunroofsIgnition KeySeat MoversSeatbelt BucklesSpeed SensingSteering ColumnWindow Lifters

$2.54 - $7.00
