MAX9919NASA+

Analog Devices Inc.
Category: Amplifiers and Comparators

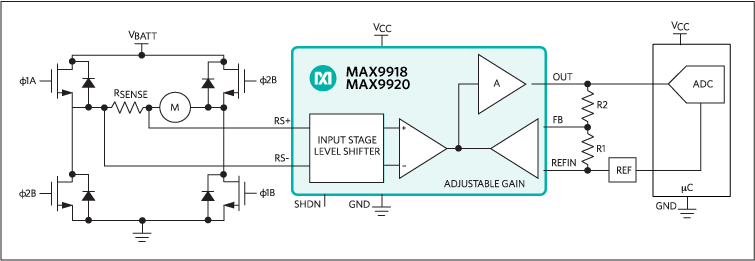

The MAX9918/MAX9919/MAX9920 are single-supply, high-accuracy current-sense amplifiers with a high input common-mode range that extends from -20V to +75V. These amplifiers are well suited for current monitoring of inductive loads such as motors and solenoids, where common-mode voltages can become negative due to inductive kickback, reverse-battery conditions, or transient events.The MAX9918/MAX9920 feature adjustable gain set by an external resistive-divider network. The MAX9919 features fixed gains of 45V/V (MAX9919F) and 90V/V (MAX9919N). The MAX9918/MAX9919/MAX9920 operate as unidirectional amplifiers when VREFIN = GND and as bidirectional amplifiers when VREFIN = VCC/2. The MAX9920 attenuates the input signal by a factor of 4 at the input level-shifting stage allowing the device to sense voltages up to 200mV (unidirectional operation) or ±100mV (bidirectional operation).The MAX9918/MAX9919/MAX9920 operate with a single 5V supply voltage, are fully specified over the -40°C to +125°C automotive temperature range, and are available in an 8-pin SOIC package.ApplicationsAutomotiveCurrent Monitoring of Inductive LoadsH-Bridge Motor Current SensingHigh- and Low-Side Precision Current SensingPrecision High-Voltage Current MonitoringSolenoid Current SensingSuper-Capacitor Charge/Discharge Monitoring
* $4.23 - * $3.72Distributors
Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
element14 APAC | MAX9919NASA+ | 202 | 1 | * $3.72 | * $2.58 | * $2.38 | * $2.18 | * $2.17 | * $2.17 | Buy | |
![]() |
Farnell | MAX9919NASA+ | 202 | 1 | * $3.34 | * $2.30 | * $2.15 | * $2.00 | * $1.94 | * $1.94 | Buy | |
![]() |
Mouser Electronics | 700-MAX9919NASA+ | 5634 | 1 | $4.31 | $2.93 | $2.92 | $2.43 | $1.93 | $1.81 | Buy |
Technical Specifications
ROHS Compliance | Compliant |
