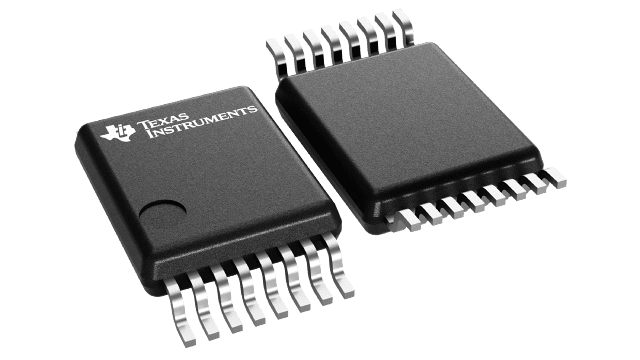

SN74CB3T3257PWR
Texas Instruments
Category: Logic
SN74CB3T3257 4-BIT 1-OF-2 FET MULT/DEMULT 2.5-V/3.3-V LOW-VOLTAGE BUS SWITCH WITH 5-V TOLERANT LEVEL SHIFTER
$0.73 - $2.15
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-17850-6-ND | 5044 | 1 | $1.78 | $1.60 | $1.51 | $1.28 | $0.87 | $0.71 | Buy |
|
 |
Arrow North American Components | SN74CB3T3257PWR | 0 | 2000 | $0.00 | Buy | |||||
|
 |
AVNET Asia Pacific | SN74CB3T3257PWR | 2000 | $0.79 | Buy | ||||||
|
 |
AVNET Europe | SN74CB3T3257PWR | 2000 | * $0.87 | Buy | ||||||
|
|
AVNET Express | SN74CB3T3257PWR | 5380 | 1 | $0.71 | $0.68 | Buy | ||||
|
|
element14 APAC | SN74CB3T3257PWR | 1 | 1 | * $1.81 | * $1.23 | * $1.14 | * $1.06 | * $0.99 | * $0.99 | Buy |
|
 |
Farnell | SN74CB3T3257PWR | 1 | 1 | * $1.87 | * $1.46 | * $1.32 | * $1.19 | * $1.15 | * $1.15 | Buy |
|
|
Freelance | SN74CB3T3257PWR | 94 | Buy | |||||||
|
|
Mouser Electronics | 595-SN74CB3T3257PWR | 3969 | 1 | $1.69 | $1.43 | $1.43 | $1.20 | $0.83 | $0.74 | Buy |
|
|
Newark | SN74CB3T3257PWR | 1 | 1 | $2.05 | $1.96 | $1.78 | $1.71 | $1.71 | $1.71 | Buy |
|
|
Texas Instruments | SN74CB3T3257PWR | 344575 | 1 | $1.28 | $1.28 | $1.28 | $1.05 | $0.57 | $0.57 | Buy |
|
|
Verical Marketplace | SN74CB3T3257PWR | 405 | 10 | $0.00 | $1.32 | $1.31 | $1.02 | $0.78 | $0.70 | Buy |
|
|
Win Source | SN74CB3T3257PWR | 112100 | 45 | $2.15 | $1.74 | $1.48 | $1.48 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Additional Features | Low Power,5-3.3V Translation,IOFF |
| Approx. Price (US$) | 0.65 | 1ku |
| Bandwidth(Max)(MHz) | 100 |
| Bits(#) | 4 |
| Channels(#) | 4 |
| F @ Nom Voltage(Max)(Mhz) | 100 |
| ICC @ Nom Voltage(Max)(mA) | 0.02 |
| Input Type | TTL/CMOS |
| Mux Configuration | 1 |
| Operating Temperature Range(C) | -40 to 85 |
| Output Type | TTL/CMOS |
| Package Group | TSSOP,TVSOP |
| Package Size | mm2 |
| Rating | Catalog |
| Ron(Max)(Ohms) | 8 |
| Ron(Typ)(Ohms) | 5 |
| Schmitt Trigger | No |
| Switch Configuration | SPDT |
| Technology Family | CB3T |
| VCC(Max)(V) | 3.6 |
| VCC(Min)(V) | 2.3 |
| Voltage(Nom)(V) | 2.5,3.3 |
| tpd @ Nom Voltage(Max)(ns) | 0.15,0.25 |
