TLV320AIC34IZAS
Texas Instruments
Category: Integrated Circuits (ICs)

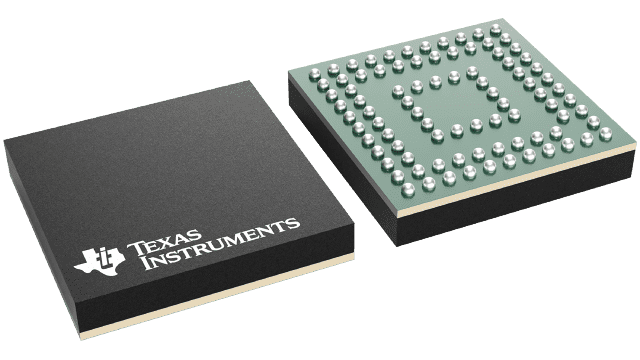

Audio Codec 4ADC / 4DAC 32-Bit 87-Pin NFBGA Tray
$4.30 - * $12.68
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-32737-ND | 531 | $11.30 | $8.86 | $5.15 | $5.35 | $6.90 | $4.17 | Buy | |
|
 |
Arrow Asia | TLV320AIC34IZAS | 500 | 250 | $5.11 | $5.11 | Buy | ||||
|
 |
Arrow Europe | TLV320AIC34IZAS | 64 | 1 | $7.64 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | Buy |
|
 |
Arrow North American Components | TLV320AIC34IZAS | 0 | 250 | $5.14 | $8.83 | $8.83 | $7.25 | $5.40 | $6.59 | Buy |
|
|
AVNET Europe | TLV320AIC34IZAS | 2500 | 250 | * $6.79 | * $5.99 | Buy | ||||
|
|
AVNET Express | TLV320AIC34IZAS | 250 | 1 | $4.30 | $4.30 | Buy | ||||
|
 |
element14 APAC | TLV320AIC34IZAS | 484 | 1 | * $12.68 | * $11.66 | * $11.55 | * $11.55 | * $11.55 | * $11.55 | Buy |
|
 |
Farnell | TLV320AIC34IZAS | 21 | 10 | * $10.98 | * $9.90 | * $9.27 | * $9.27 | * $9.27 | Buy | |
|
|
Mouser Electronics | 595-TLV320AIC34IZAS | 35 | 1 | $11.25 | $8.82 | $7.63 | $7.63 | $6.64 | $6.63 | Buy |
|
|
Newark | TLV320AIC34IZAS | 484 | 1 | $14.02 | $13.41 | $12.19 | $11.66 | $11.66 | $11.66 | Buy |
|
|
Perceptive | TLV320AIC34IZAS | 7130 | 1+ | Buy | ||||||
|
|
Texas Instruments | TLV320AIC34IZAS | 45500 | 1 | $9.29 | $9.29 | $9.29 | $7.57 | $5.05 | $5.05 | Buy |
|
|
Verical Marketplace | TLV320AIC34IZAS | 248 | 2 | $0.00 | $10.32 | $9.07 | $8.75 | $5.40 | $0.00 | Buy |
|
|
Win Source | TLV320AIC34IZAS | 11500 | 9 | $8.73 | $6.01 | $6.01 | $6.01 | $6.01 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| # ADCs(Typ) | 4 |
| # Inputs / # Outputs | 12 / 14 |
| # of Digital Audio Interfaces | 2 |
| ADC SNR(Typ)(dB) | 92 |
| Additional Features | 3D,EQ,Matrix Mixing,2 PLLs,HS detect |
| Approx. Price (US$) | 3.95 | 1ku |
| Control Interface | I2C |
| DAC SNR(Typ)(dB) | 100 |
| DACs(#) | 4 |
| Digital Audio Interface | L,R,I2S,DSP |
| Headphone Driver | Yes |
| Operating Temperature Range(C) | -40 to 85 |
| Package Group | NFBGA |
| Package Size | mm2 |
| Rating | Catalog |
| Sampling Rate(Max)(kHz) | 96 |
| Speaker Amp Output Power(Max)(W) | 0.5 |
| Speaker Amp Outputs | 2 |
| Speaker Amp Type | Class-AB |
| THD+N ADC(Typ)(dB) | -87 |
| THD+N DAC(Typ)(dB) | -88 |
