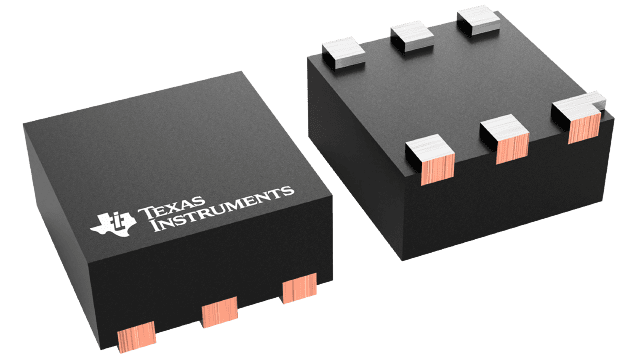

TPD5E003DPFR
Texas Instruments
Category: ESD Suppressors
ESD Suppressor Diode Arrays ±15KV 6-Pin X2SON T/R
$0.18 - $0.59
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-43577-6-ND | 35052 | $0.91 | $0.57 | $0.45 | $0.37 | $0.26 | $0.19 | Buy | |
|
 |
Arrow Asia | TPD5E003DPFR | 10000 | 5000 | $0.17 | Buy | |||||
|
 |
Arrow North American Components | TPD5E003DPFR | 0 | 5000 | $0.16 | $0.16 | $0.16 | $0.16 | $0.16 | $0.17 | Buy |
|
 |
AVNET Asia Pacific | TPD5E003DPFR | 5000 | $0.18 | Buy | ||||||
|
 |
AVNET Europe | TPD5E003DPFR | 4900 | 5000 | * $0.23 | Buy | |||||
|
|
AVNET Express | TPD5E003DPFR | 5000 | $0.18 | Buy | ||||||
|
|
Mouser Electronics | 595-TPD5E003DPFR | 7763 | 1 | $0.59 | $0.43 | $0.43 | $0.27 | $0.17 | $0.14 | Buy |
|
|
Texas Instruments | TPD5E003DPFR | 545580 | 1 | $0.41 | $0.41 | $0.41 | $0.28 | $0.14 | $0.14 | Buy |
|
|
Verical Marketplace | TPD5E003DPFR | 10000 | 5000 | $0.19 | $0.19 | $0.19 | $0.19 | $0.19 | $0.16 | Buy |
|
|
Win Source | TPD5E003DPFR | 47000 | 195 | $0.51 | $0.37 | $0.37 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 0.15 | 1ku |
| Bi-/Uni-Directional | Uni-Directional |
| Breakdown Voltage(Min)(V) | 6 |
| Dynamic Resistance(Typ)() | 0.8 |
| IEC 61000-4-2 Air-Gap(+/- kV) | 15 |
| IEC 61000-4-2 Contact(+/- kV) | 8 |
| IEC 61000-4-5 (Surge)(Max)(A) | 3 |
| IEC 61000-4-5 (Surge)(Max)(W) | 40 |
| IO Capacitance(Typ)(pF) | 9 |
| IO Leakage Current(Max)(nA) | 100 |
| Interface | Memory/SIM Card |
| Number of Channels(#) | 5 |
| Operating Temperature Range(C) | -40 to 125 |
| Package Group | X2SON |
| Package Size | mm2 |
| Rating | Catalog |
