TPS70351PWPG4
Texas Instruments
Category: Power Management ICs

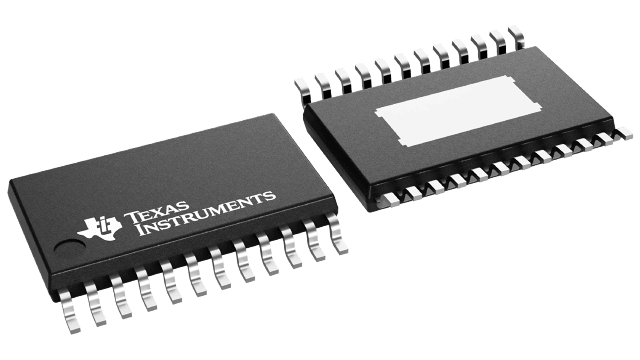

LDO Regulator Pos 3.3V1.8V 1A/2A 24-Pin HTSSOP EP Tube
* $4.69 - * $7.66
Distributors
Currency:
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Compliant |
| Accuracy(%) | 2 |
| Approx. Price (US$) | 2.35 | 1ku |
| Fixed Output Options(V) | 1.2,1.5,1.8,2.5,3.3 |
| Iout(Max)(A) | 1 |
| Iout2(A) | 2 |
| Iq(Typ)(mA) | 0.185 |
| Noise(uVrms) | 78 |
| Operating Temperature Range(C) | -40 to 125 |
| Output Capacitor Type | Ceramic,Non-Ceramic |
| Output Options | Adjustable Output,Fixed Output |
| PSRR @ 100KHz(dB) | 22 |
| Package Group | HTSSOP |
| Package Size | mm2 |
| Rating | Catalog |
| Regulated Outputs(#) | 2 |
| Special Features | Enable,Output Discharge,Power Good,Sequencing and Monitoring |
| Thermal Resistance JA(C/W) | N/A |
| Vdo(Typ)(mV) | 160 |
| Vin(Max)(V) | 6 |
| Vin(Min)(V) | 2.7 |
| Vout(Max)(V) | 5.5 |
| Vout(Min)(V) | 1.2 |
| Vout2(Max)(V) | 5.5 |
| Vout2(Min)(V) | 1.2 |
