TPS73701DCQG4
Texas Instruments
Category: Power Management ICs

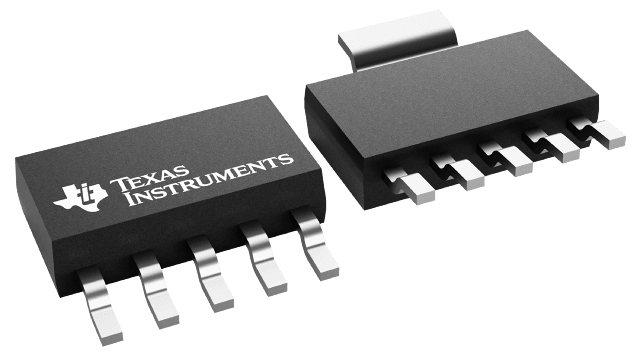

LDO Regulator Pos 1.2V to 5.5V 1A 6-Pin(5+Tab) SOT-223 Tube
$0.78 - $2.25
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
AVNET Europe | TPS73701DCQG4 | 1 | * $1.03 | * $0.97 | * $0.86 | * $0.82 | * $0.82 | * $0.82 | Buy | |
|
 |
AVNET Express | TPS73701DCQG4 | 3967 | 1 | $0.76 | $0.73 | Buy | ||||
|
|
Newark | TPS73701DCQG4 | 468 | $1.80 | $1.53 | $1.53 | $1.23 | $0.88 | $0.88 | Buy | |
|
 |
Texas Instruments | TPS73701DCQG4 | 98910 | 1 | $1.40 | $1.40 | $1.40 | $1.15 | $0.62 | $0.62 | Buy |
|
|
Utsource | TPS73701DCQG4 | 1000 | $1.40 | $1.32 | Buy | |||||
|
|
Win Source | TPS73701DCQG4 | 519600 | 105 | $2.25 | $1.82 | $1.55 | $1.55 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Compliant |
| Accuracy(%) | 3 |
| Additional Features | Enable,Fast Transient Response,Foldback Overcurrent Protection,Soft Start,Thermal Shutdown |
| Approx. Price (US$) | 0.58 | 1ku |
| Fixed Output Options(V) | 1.8,2.5,3,3.3,4 |
| Iout(Max)(A) | 1 |
| Iq(Typ)(mA) | 0.4 |
| Noise(uVrms) | 48 |
| Operating Temperature Range(C) | -40 to 125 |
| Output Capacitor Type | Ceramic |
| Output Options | Adjustable Output,Fixed Output |
| PSRR @ 100KHz(dB) | 33 |
| Package Group | SON,SOT-223,WSON |
| Package Size(mm2=WxL) | [pf]6WSON[/pf] |
| Rating | Catalog |
| Regulated Outputs(#) | 1 |
| Vdo(Typ)(mV) | 130 |
| Vin(Max)(V) | 5.5 |
| Vin(Min)(V) | 2.2 |
| Vout(Max)(V) | 5.4 |
| Vout(Min)(V) | 1.2 |
