TPS92410DR
Texas Instruments
TPS92410 Switch-Controlled, Direct Drive, Linear Controller for Offline LED Drivers
$0.70 - $1.01
Distributors
Currency:
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 0.65 | 1ku |
| Comments | 120VAC/230VAC Application Voltage Ranges |
| Dimming Method | Analog,Forward Phase (Triac),Reverse Phase |
| Input Voltage(Type) | AC Linear |
| Iout(Max)(A) | 1 |
| Iq(Typ)(mA) | 0.305 |
| Operating Temperature Range(C) | -40 to 150 |

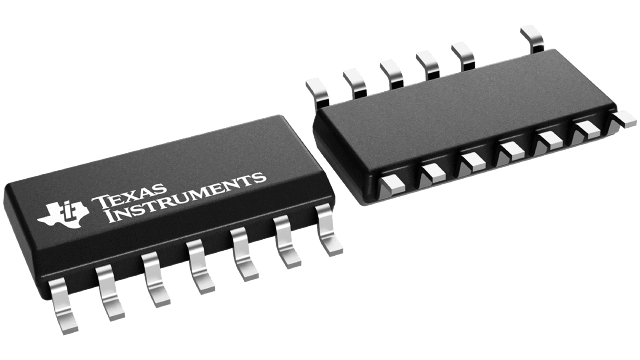

| Package Group | SOIC |
| Package Size(mm2=WxL) | [pf]13SOIC[/pf] |
| Power Factor Correction(Min) | Active |
| Rating | Catalog |
| Regulated Outputs(#) | 1 |
| Special Features | Thermal Foldback,Thermal Shutdown |
| Switching Frequency(Max)(kHz) | 0 |
| Switching Frequency(Min)(kHz) | 0 |
| Topology | Current Sink |
| Type | Linear |
| Vin(Max)(V) | 450 |
| Vin(Min)(V) | 9.5 |
| Vout(Max)(V) | 450 |
| Vout(Min)(V) | 30 |
| Vref(V) | 3 |
