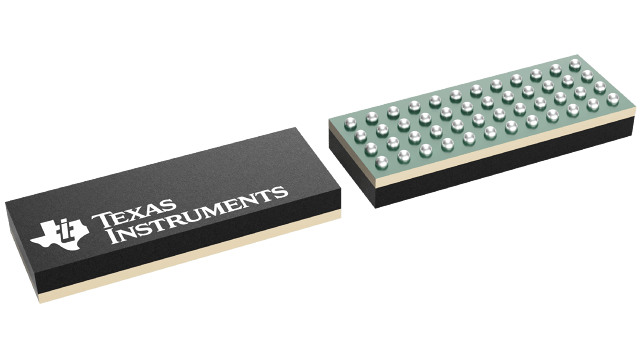

TS3DDR4000ZBAR
Texas Instruments
Category: Switches and Multiplexers
Analog Switch 12 SPDT 48-Pin NFBGA T/R
$1.11 - $32.93
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-47306-6-ND | 1653 | $2.32 | $1.72 | $1.57 | $1.41 | $1.24 | $1.16 | Buy | |
|
 |
Arrow Asia | TS3DDR4000ZBAR | 3000 | 3000 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $1.30 | Buy |
|
 |
Arrow North American Components | TS3DDR4000ZBAR | 0 | 3000 | $2.63 | $2.27 | $2.05 | $1.86 | $1.35 | $0.00 | Buy |
|
 |
AVNET Asia Pacific | TS3DDR4000ZBAR | 15000 | 3000 | $1.51 | Buy | |||||
|
 |
AVNET Europe | TS3DDR4000ZBAR | 3000 | * $1.28 | Buy | ||||||
|
|
AVNET Express | TS3DDR4000ZBAR | 3000 | 3000 | $1.09 | Buy | |||||
|
 |
Jak Electronics | TS3DDR4000ZBAR | 1612 | $32.93 | $28.33 | $28.33 | $26.63 | $25.80 | $0.00 | Buy | |
|
|
Mouser Electronics | 595-TS3DDR4000ZBAR | 4836 | 1 | $2.58 | $2.19 | $2.19 | $1.86 | $1.27 | $1.11 | Buy |
|
|
Newark | TS3DDR4000ZBAR | 3000 | $1.21 | $1.21 | $1.21 | $1.21 | $1.21 | $1.21 | Buy | |
|
|
Perceptive | TS3DDR4000ZBAR | 46580 | 1+ | Buy | ||||||
|
|
Texas Instruments | TS3DDR4000ZBAR | 28524 | 1 | $1.95 | $1.95 | $1.95 | $1.61 | $0.87 | $0.87 | Buy |
|
|
Utmel | TS3DDR4000ZBAR | 1612 | $4.47 | $3.84 | $3.84 | $3.61 | $3.50 | $0.00 | Buy | |
|
|
Verical Marketplace | TS3DDR4000ZBAR | 3000 | 3000 | $2.27 | $2.05 | $1.86 | $1.45 | $0.98 | Buy | |
|
|
Win Source | TS3DDR4000ZBAR | 18000 | 23 | Buy |
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Compliant |
| Additional Features | Ioff Protection,DDR4,DDR3 |
| Approx. Price (US$) | 1.10 | 1ku |
| Bandwidth(MHz) | 6000 |
| Bandwidth(Max)(MHz) | 6000 |
| Configuration | 1 |
| Crosstalk(dB) | -68 |
| ESD Charged Device Model(kV) | 1 |
| ESD HBM(Typ)(kV) | 3 |
| ICC(Max)(uA) | 48 |
| ICC(Typ)(uA) | 40 |
| Input/Ouput Voltage(Max)(V) | 3.3 |
| Input/Ouput Voltage(Min)(V) | 0 |
| Input/Output OFF-state Capacitance(Typ)(pF) | 1 |
| Input/Output ON-state Capacitance(Typ)(pF) | 0.5 |
| Number of Channels(#) | 12 |
| OFF-state leakage current(Max)(?A) | 5 |
| Operating Temperature Range(C) | -40 to 85 |
| Package Group | NFBGA |
| Package Size(mm2=WxL) | [pf]48NFBGA[/pf] |
| Propagation Delay(ns) | 85 |
| RON Flatness(Typ)(Ohms) | 0.6 |
| Ron Channel Match(Max)(?) | 1 |
| Ron(Max)(Ohms) | 11.2 |
| Ron(Typ)(Ohms) | 8.3 |
| Turn off Time (Disable)(Max)(ns) | 65 |
| Turn on Time (Enable)(Max)(ns) | 65 |
| VCC(Max)(V) | 3.6 |
| VCC(Min)(V) | 2.375 |
| VIH(Min)(V) | 1.4 |
| VIL(Max)(V) | 0.5 |
