TXS0104EDR
Texas Instruments
Category: Logic
TXS0104E 4-Bit Bidirectional Voltage-Level Shifter for Open-Drain and Push-Pull Applications
$0.38 - $8.05
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-20696-6-ND | 12765 | $1.22 | $1.09 | $1.04 | $0.85 | $0.56 | $0.49 | Buy | |
|
 |
Arrow Asia | TXS0104EDR | 7500 | 2500 | $0.49 | Buy | |||||
|
 |
Arrow North American Components | TXS0104EDR | 1986 | 1 | $1.09 | $0.95 | $0.94 | $0.74 | $0.49 | $0.51 | Buy |
|
 |
AVNET Asia Pacific | TXS0104EDR | 10000 | 2500 | $0.59 | Buy | |||||
|
 |
AVNET Europe | TXS0104EDR | 17500 | 2500 | * $0.60 | Buy | |||||
|
|
AVNET Express | TXS0104EDR | 13448 | 1 | $0.43 | $0.40 | Buy | ||||
|
|
element14 APAC | TXS0104EDR | 21 | 100 | * $0.65 | * $0.57 | * $0.53 | Buy | |||
|
 |
Farnell | TXS0104EDR | 94 | 100 | * $0.80 | * $0.56 | * $0.47 | Buy | |||
|
 |
Jak Electronics | TXS0104EDR | 15333 | $8.05 | $6.11 | $6.11 | $5.40 | $5.16 | $0.00 | Buy | |
|
|
Mouser Electronics | 595-TXS0104EDR | 7467 | 1 | $1.08 | $0.93 | $0.93 | $0.72 | $0.48 | $0.41 | Buy |
|
|
Newark | TXS0104EDR | 7 | 1 | $0.38 | $0.38 | $0.38 | $0.38 | $0.38 | $0.38 | Buy |
|
|
Texas Instruments | TXS0104EDR | 301888 | 1 | $0.70 | $0.70 | $0.70 | $0.54 | $0.28 | $0.28 | Buy |
|
|
TME | TXS0104EDR | 729 | $1.20 | Buy | ||||||
|
|
Utmel | TXS0104EDR | 15333 | $1.09 | $0.83 | $0.83 | $0.73 | $0.70 | $0.00 | Buy | |
|
|
Verical Marketplace | TXS0104EDR | 1986 | 13 | $0.00 | $0.00 | $0.94 | $0.74 | $0.49 | $0.00 | Buy |
|
|
Win Source | TXS0104EDR | 122327 | 120 | $1.35 | $1.18 | $0.97 | $0.97 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Approx. Price (US$) | 0.45 | 1ku |
| Bits(#) | 4 |
| F @ Nom Voltage(Max)(Mhz) | 12 |
| ICC @ Nom Voltage(Max)(mA) | 0.0144 |
| Max Drive(mA) | 24 |
| Operating Temperature Range(C) | -40 to 85 |

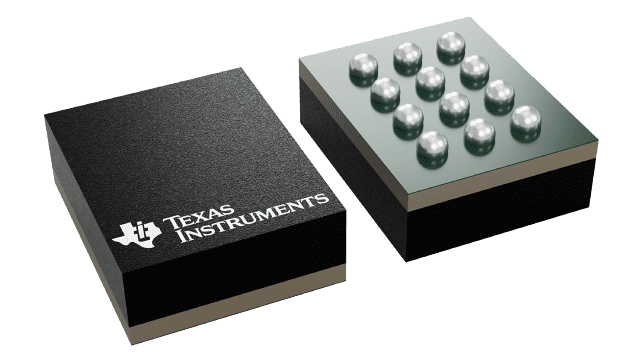

| Package Group | SOIC,TSSOP,DSBGA,VQFN,BGA MICROSTAR JUNIOR |
| Package Size | mm2 |
| Rating | Catalog |
| Schmitt Trigger | No |
| Technology Family | TXS |
| VCCA(Max)(V) | 3.6 |
| VCCA(Min)(V) | 1.65 |
| VCCB(Max)(V) | 5.5 |
| VCCB(Min)(V) | 2.3 |
| Voltage(Nom)(V) | 1.8,2.5,3.3,5 |
| tpd @ Nom Voltage(Max)(ns) | 9.6,10 |
