Latches OCTAL D LATCH 3STATE

Latches OCTAL D-TYPE TRANS

Flip-Flops 3.3V/5V ECL 6-Bit Diff w/Master Reset

8-BIT P-S SHIFT REG

The MAX9375 is a fully differential, high-speed, anything-to-LVPECL translator designed for signal rates up to 2GHz. The MAX9375's extremely low propagation delay and high speed make it ideal for various high-speed network routing and backplane applications.The MAX9375 accepts any differential input signal within the supply rails and with minimum amplitude of 100mV. Inputs are fully compatible with the LVDS, LVPECL, HSTL, and CML differential signaling standards. Outputs are LVPECL and have sufficient current to drive 50Ω transmission lines.The MAX9375 is available in an 8-pin µMAX package and operates from a single +3.3V supply over the -40°C to +85°C temperature range.ApplicationsBackplane Logic Standard TranslationDLCsDSLAMLocal Area Networks (LANs)WANs

The MAX9376 is a fully differential, high-speed, LVDS/anything-to-LVPECL/LVDS dual translator designed for signal rates up to 2GHz. One channel is LVDS/anything-to-LVPECL translator and the other channel is LVDS/anything-to-LVDS translator. The MAX9376's extremely low propagation delay and high speed make it ideal for various high-speed network routing and backplane applications.The MAX9376 accepts any differential input signal within the supply rails and with minimum amplitude of 100mV. Inputs are fully compatible with the LVDS, LVPECL, HSTL, and CML differential signaling standards. LVPECL outputs have sufficient current to drive 50Ω transmission lines. LVDS outputs conform to the ANSI EIA/TIA-644 LVDS standard.The MAX9376 is available in a 10-pin µMAX® package and operates from a single +3.3V supply over the -40°C to +85°C temperature range.ApplicationsBackplane Logic Standard TranslationDLCsDSLAM BackplaneLocal Area Networks (LANs)LVDS-to-LVPECL, LVPECL-to-LVDSUp/DownconvertersWANs

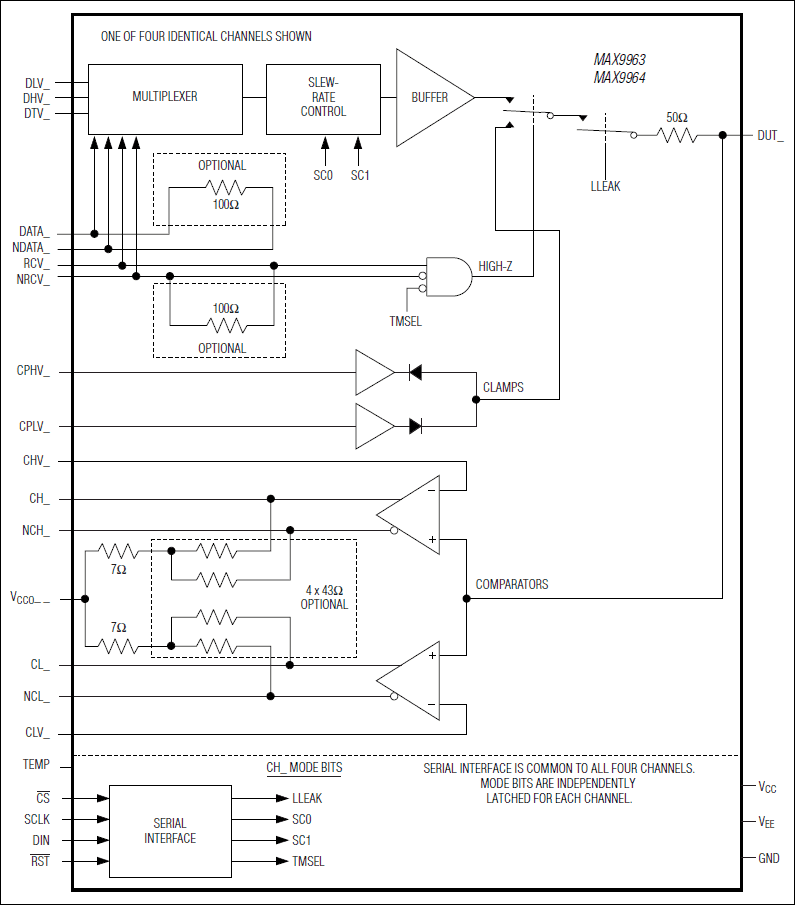

The MAX9963/MAX9964 four-channel, low-power, high-speed pin electronics driver and comparator ICs include, for each channel, a three-level pin driver, a dual comparator, and variable clamps. The driver features a wide voltage range and high-speed operation, includes high-Z and active-termination (3rd-level drive) modes, and is highly linear even at low-voltage swings. The dual comparator provides low dispersion (timing variation) over a wide variety of input conditions. The clamps provide damping of high-speed DUT waveforms when the device is configured as a high-impedance receiver. High-speed, differential control inputs compatible with ECL, LVPECL, LVDS, and GTL levels are provided for each channel. ECL/LVPECL or flexible open-collector outputs are available for the comparators.The A-grade version provides tight matching of gain and offset for the drivers and comparators, allowing reference levels to be shared across multiple channels in cost-sensitive systems. For system designs that incorporate independent reference levels for each channel, the B-grade version is available at reduced cost.Optional internal resistors at the high-speed inputs provide differential termination of LVDS inputs, while optional internal resistors provide the pullup voltage and source termination for open-collector comparator outputs. These features significantly reduce the discrete component count on the circuit board. Low-leakage, slew rate, and tri-state/terminate controls are operational configurations that are programmed through a 3-wire, low-voltage, CMOS-compatible serial interface.The MAX9963/MAX9964 operating range is -1.5V to +6.5V, with power dissipation of only 825mW per channel.These devices are available in a 100-pin, 14mm x 14mm body, 0.5mm pitch TQFP with an exposed 8mm x 8mm die pad on the top (MAX9963) or bottom (MAX9964) of the package for efficient heat removal. The MAX9963/MAX9964 are specified to operate with an internal die temperature of +70°C to +100°C, and feature a die temperature monitor output.ApplicationsActive Burn-In SystemsCommodity DRAM TestersFlash Memory TestersLow-Cost Mixed-Signal/System-on-Chip TestersStructural Testers

Programmable Mixed Signal Matrix with In-System Programmability 2.048kHz/2.048MHz/25MHz Oscillators 20-Pin STQFN

The MAX13030E–MAX13035E 6-channel, bidirectionallevel translators provide the level shifting necessary for100Mbps data transfer in multivoltage systems. TheMAX13030E–MAX13035E are ideally suited for memory-card level translation, as well as generic level translation in systems with six channels. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. Logic signals present on the VL side ofthe device appear as a higher voltage logic signal onthe VCC side of the device and vice versa. TheMAX13035E features a CLK_RET output that returns thesame clock signal applied to the CLK_VL input.The MAX13030E–MAX13035E operate at full speedwith external drivers that source as little as 4mA outputcurrent. Each I/O channel is pulled up to VCC or VL byan internal 30μA current source, allowing theMAX13030E–MAX13035E to be driven by either push-pullor open-drain drivers.The MAX13030E–MAX13034E feature an enable (EN)input that places the device into a low-power shutdownmode when driven low. The MAX13030E–MAX13035Efeatures an automatic shutdown mode that disables thepart when VCC is less than VL. The state of I/O VCC_ and I/O VL_ during shutdown is chosen by selecting the appropriate part version (see Ordering Information/Selector Guide located within the full datasheet).The MAX13030E–MAX13035E accept VCC voltagesfrom +2.2V to +3.6V and VL voltages from +1.62V to+3.2V, making them ideal for data transfer betweenlow-voltage ASIC/PLDs and higher voltage systems.The MAX13030E–MAX13035E are available in 16-bumpUCSP (2mm x 2mm) and 16-pin TQFN (4mm x 4mm)packages, and operate over the extended -40°C to+85°C temperature range.ApplicationsMemory Stick Card Level TranslationMiniSD Card Level TranslationMMC Level TranslationSD Card Level TranslationTransFlash® Level Translation

The MAX13030E–MAX13035E 6-channel, bidirectionallevel translators provide the level shifting necessary for100Mbps data transfer in multivoltage systems. TheMAX13030E–MAX13035E are ideally suited for memory-card level translation, as well as generic level translation in systems with six channels. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. Logic signals present on the VL side ofthe device appear as a higher voltage logic signal onthe VCC side of the device and vice versa. TheMAX13035E features a CLK_RET output that returns thesame clock signal applied to the CLK_VL input.The MAX13030E–MAX13035E operate at full speedwith external drivers that source as little as 4mA outputcurrent. Each I/O channel is pulled up to VCC or VL byan internal 30μA current source, allowing theMAX13030E–MAX13035E to be driven by either push-pullor open-drain drivers.The MAX13030E–MAX13034E feature an enable (EN)input that places the device into a low-power shutdownmode when driven low. The MAX13030E–MAX13035Efeatures an automatic shutdown mode that disables thepart when VCC is less than VL. The state of I/O VCC_ and I/O VL_ during shutdown is chosen by selecting the appropriate part version (see Ordering Information/Selector Guide located within the full datasheet).The MAX13030E–MAX13035E accept VCC voltagesfrom +2.2V to +3.6V and VL voltages from +1.62V to+3.2V, making them ideal for data transfer betweenlow-voltage ASIC/PLDs and higher voltage systems.The MAX13030E–MAX13035E are available in 16-bumpUCSP (2mm x 2mm) and 16-pin TQFN (4mm x 4mm)packages, and operate over the extended -40°C to+85°C temperature range.ApplicationsMemory Stick Card Level TranslationMiniSD Card Level TranslationMMC Level TranslationSD Card Level TranslationTransFlash® Level Translation
