The MAX3814 TMDS™ EQ/driver IC compensates for FR-4 and cable losses up to the DVI™/HDMI® transmit connector and provides a fully compliant DVI/HDMI TMDS output. The device can also be used in DVI/HDMI cable applications to extend reach and improve jitter margin of cable channels at the receive-side connector.The on-chip TMDS drivers operate at a standard current level for implementing a typical DVI/HDMI nonback-terminated transmitter, as well as a 50% higher current mode for using a 200Ω back termination resistor (nonmatching) to achieve a 10dB return loss. Typical DVI/HDMI output drivers contribute to reflection problems between the connector and a typical high-impedance (open) DVI/HDMI Tx output. The selectable output current (LEVEL pin) gives the option of partial back termination (e.g., differentially connected 200Ω) to mitigate the reflection problem effectively while keeping common-mode offset to a minimum.The 4-channel implementation treats all channels identically. To allow board layout flexibility for DVI and HDMI connectors, which have different channel order, the clock and data channels can be arbitrarily assigned.The MAX3814 operates from a 3.3V power supply, standard for DVI/HDMI applications, and is packaged in a 5mm x 5mm x 0.1mm, 32-pin TQFP package.ApplicationsCable TMDS EqualizerDocking Station TMDS Equalizer and DriverLaptop PC TMDS Equalizer and Driver

Thermal Interface Products NRFND 04/05/2021 NO REPLACEMENT

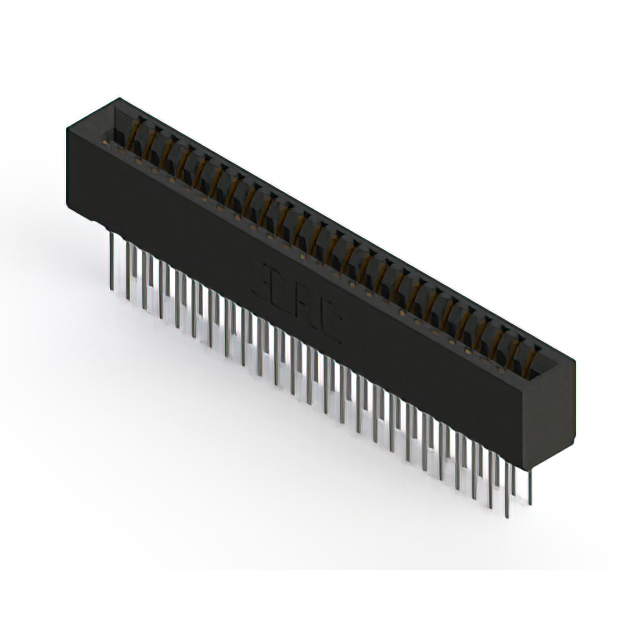

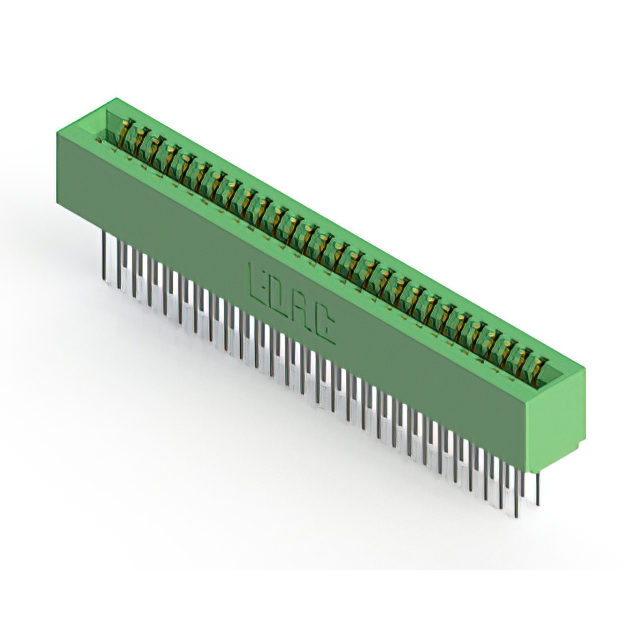

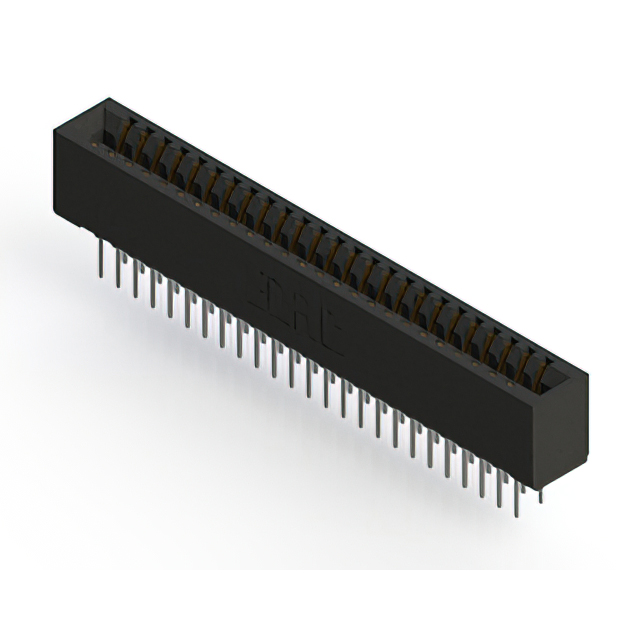

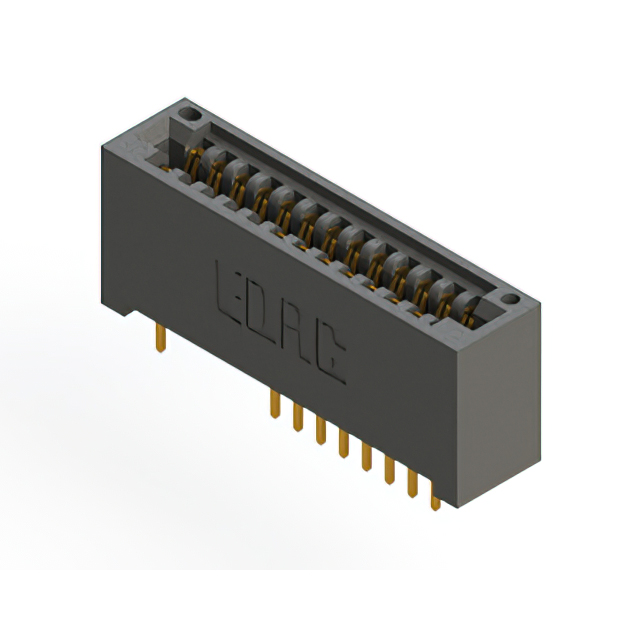

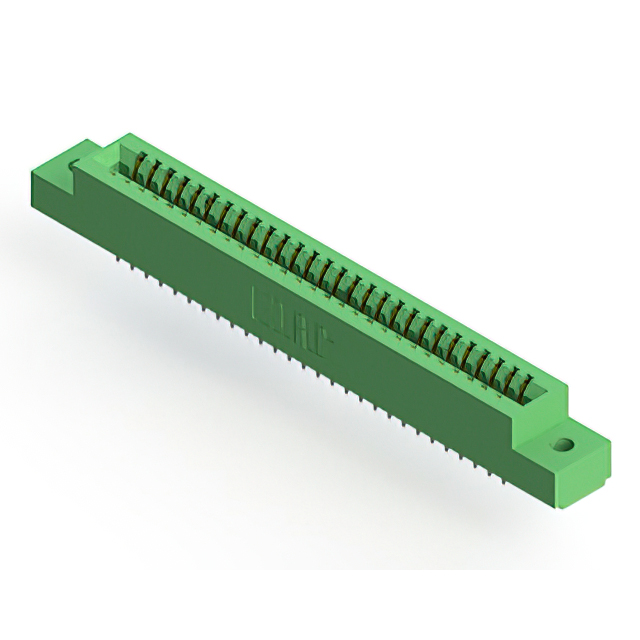

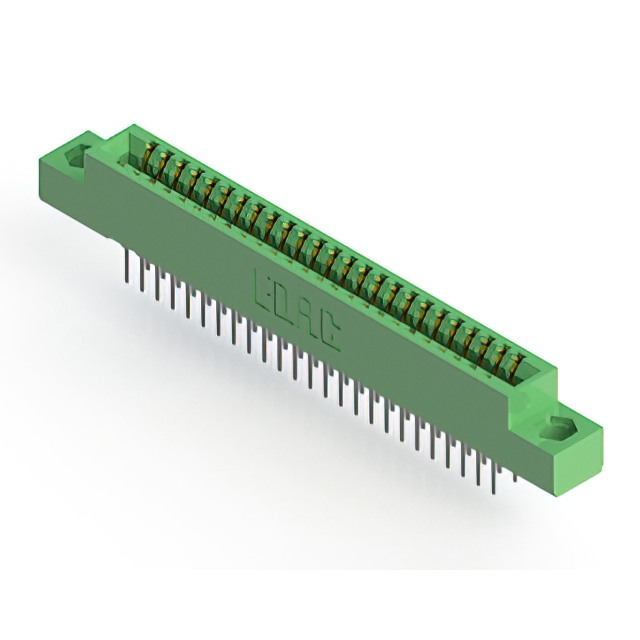

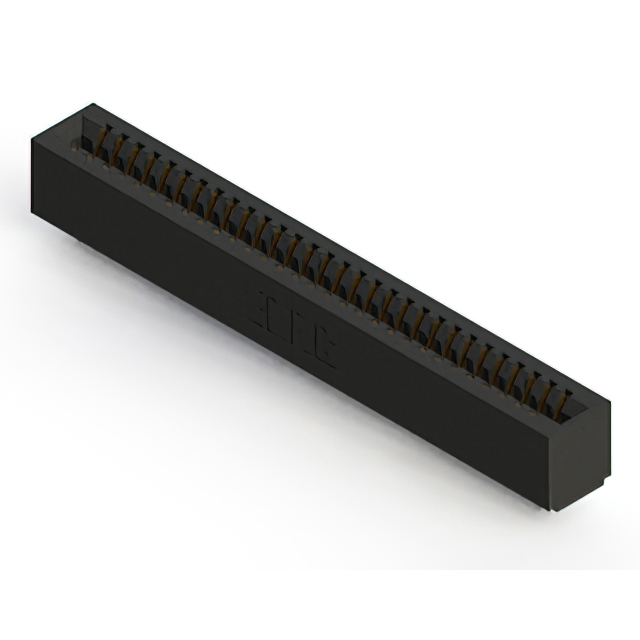

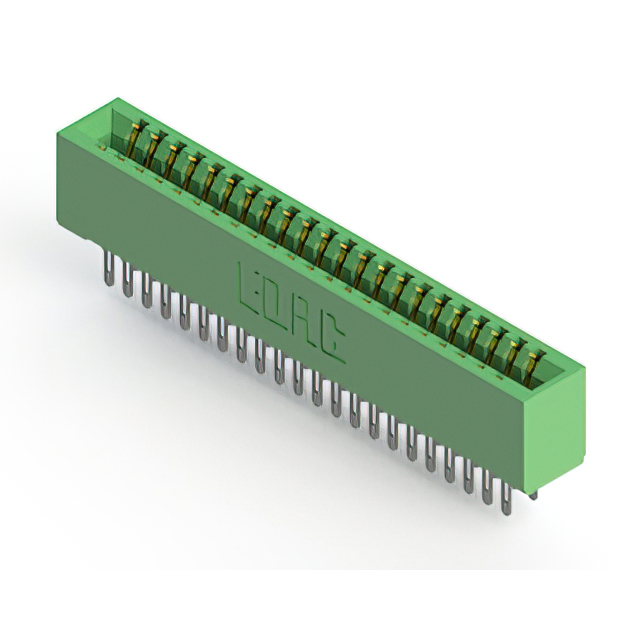

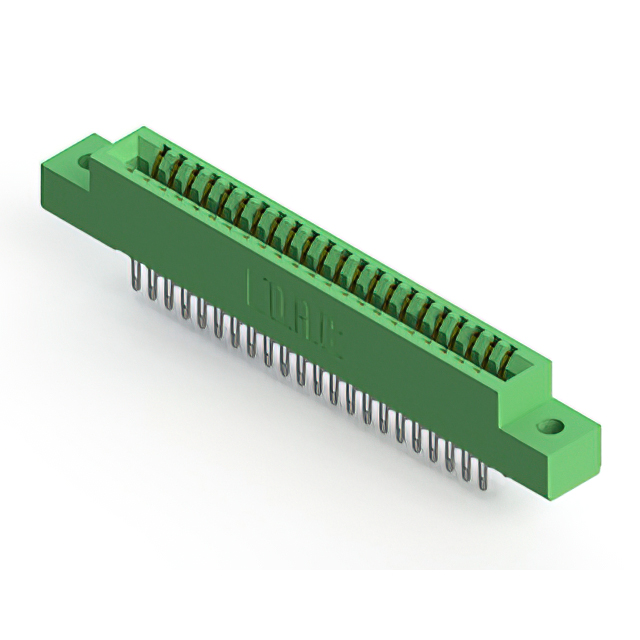

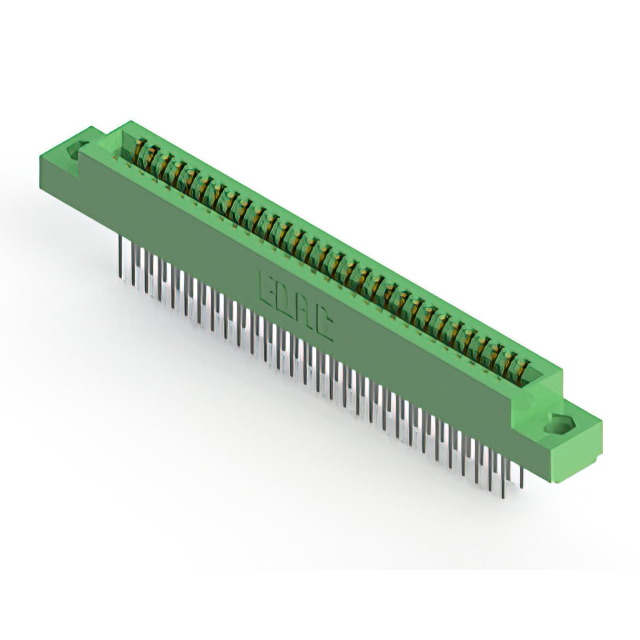

Standard Card Edge Connectors BLK CRD EDGE .156X.2 PCB DEPTH .350

Board to Board & Mezzanine Connectors DIN ML CONN ANG 13,21,31 POSITIONS

The MAX14842 translates digital signals between two domains that have different ground references of up to 72V. The device features six communication channels, two bidirectional and four unidirectional. Two of the four unidirectional channels go in each direction. The device is powered by two supply voltages that independently define the logic levels of each ground domain.The MAX14842 supports guaranteed data rates up to 30Mbps on the four unidirectional channels and up to 2Mbps on the two bidirectional channels. The bidirectional channels have open-drain outputs, making them suitable for I²C signals. I²C clock stretching and hot swapping is supported on the bidirectional channels.Undervoltage lockout ensures that the output pins have a defined behavior during power-up, power-down, and during supply transients. For proper operation, ensure that 0V ≤ (VGNDB - VGNDA) ≤ 72V. Note that GNDB must be greater than or equal to GNDA.The MAX14842 is available in a 16-pin TQFN package and is specified over the -40°C to +125°C automotive temperature range.ApplicationsBattery ManagementI2C, SMBus™, SPI™, and MICROWIRE™ SignalsMedical SystemsPower-Over-EthernetTelecommunication Systems

High Speed/Modular Connectors Impact Mezz 22mm 3x16 Unguided

LED INDICATOR 12MM ROHS COMPLIANT: YES

ROCKER SWITCH KG PROTECTED ROHS COMPLIANT: YES

ROCKER SWITCH KG PROTECTED ROHS COMPLIANT: YES

PSOC, IN SYSTEM SERIAL PROGRAMMER; IC Product Type:In-Circuit Programmer; Silicon Family Name:PSoC; Core Architecture:PSoC; Core Sub-Architecture:-; Kit Contents:ISSP Programmer, Software CD-ROM, 6-Foot USB cable, 2-Foot Programming Cable, 9-Volt Power Supply; Features:In-System Serial Programmer; Product Range:-; SVHC:No SVHC (17-Dec-2015)
