Luxeon C Green

LED, LUXEON, STAR, HEX, BATWING, CYAN; Product Range:-; LED Colour:Cyan; Wavelength Typ:520nm; Viewing Angle:110°; Luminous Flux @ Test:45lm; Forward Current If Max:350mA; Forward Current @ Test:350mA; Forward Voltage @ Test:3.42V; Luminous Intensity @ Test:-; MSL:-; SVHC:No SVHC (07-Jul-2017); Beam Pattern:Batwing; Current Rating:350mA; External Depth:19.9mm; External Length / Height:6.4mm; External Width:19mm; Forward Current If:350mA; Forward Current If(AV):350mA; Forward Voltage VF Max:3.99V; LED Mounting:SMD; Luminous Flux:45lm; Luminous Flux @ Max:45lm; Luminous Flux Min:30.6lm; Luminous Flux Typ:45lm; No. of Pins:2Pins; Operating Temperature Max:105°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +105°C; Peak Forward Current:500mA; Power @ Test:1.2W; Storage Temperature Max:105°C; Storage Temperature Min:-40°C; Voltage Vf Min:2.79V; Voltage Vf Typ:3.42V; Wavelength Max:520nm; Wavelength Min:490nm

LED, LUXEON V, GREEN; Product Range:-; LED Colour:Green; Wavelength Typ:550nm; Viewing Angle:150°; Luminous Flux @ Test:160lm; Forward Current If Max:700mA; Forward Current @ Test:700mA; Forward Voltage @ Test:6.84V; Luminous Intensity @ Test:-; Power Dissipation Pd:120mW; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (07-Jul-2017); Beam Pattern:Lambertian; Bulb Size:5.6mm; External Diameter:8mm; External Length / Height:5.86mm; Forward Current If:700mA; Forward Current If(AV):700mA; Forward Voltage:6.84V; Forward Voltage VF Max:8.31V; LED / Lamp Size:5.6mm; LED Mounting:SMD; Lens Shape:Dome; Luminous Flux:160lm; Luminous Flux @ Max:160lm; Luminous Flux Min:67.2lm; Luminous Flux Typ:160lm; No. of Pins:2Pins; Operating Temperature Max:120°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +120°C; Peak Forward Current:1000mA; Power @ Test:4.8W; Storage Temperature Max:120°C; Storage Temperature Min:-40°C; Voltage Vf Min:5.43V; Voltage Vf Typ:6.84V

LED, LUXEON V, CYAN; Product Range:-; LED Colour:Cyan; Wavelength Typ:520nm; Viewing Angle:150°; Luminous Flux @ Test:160lm; Forward Current If Max:700mA; Forward Current @ Test:700mA; Forward Voltage @ Test:6.84V; Luminous Intensity @ Test:-; Power Dissipation Pd:120mW; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (07-Jul-2017); Beam Pattern:Lambertian; Bulb Size:5.6mm; External Diameter:8mm; External Length / Height:5.86mm; Forward Current If:700mA; Forward Current If(AV):700mA; Forward Voltage:6.84V; Forward Voltage VF Max:8.31V; LED / Lamp Size:5.6mm; LED Mounting:SMD; Lens Shape:Dome; Luminous Flux:160lm; Luminous Flux @ Max:160lm; Luminous Flux Min:67.2lm; Luminous Flux Typ:160lm; No. of Pins:2Pins; Operating Temperature Max:120°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +120°C; Peak Forward Current:1000mA; Power @ Test:4.8W; Storage Temperature Max:120°C; Storage Temperature Min:-40°C; Voltage Vf Min:5.43V; Voltage Vf Typ:6.84V

LED, LUXEON V SIDE EMIT CYAN; Product Range:-; LED Colour:Cyan; Wavelength Typ:520nm; Viewing Angle:85°; Luminous Flux @ Test:145lm; Forward Current If Max:700mA; Forward Current @ Test:700mA; Forward Voltage @ Test:6.84V; Luminous Intensity @ Test:-; MSL:-; SVHC:No SVHC (07-Jul-2017); Beam Pattern:Side Emitting; Current Rating:700mA; External Diameter:8mm; External Length / Height:6.09mm; Forward Current If:700mA; Forward Current If(AV):700mA; Forward Voltage VF Max:8.31V; LED Mounting:SMD; Luminous Flux @ Max:145lm; Luminous Flux Min:23.5lm; Luminous Flux Typ:145lm; No. of Pins:2Pins; Operating Temperature Max:120°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +120°C; PIV Max:5V; Peak Forward Current:1000mA; Peak Wavelength:505nm; Power @ Test:4.8W; Storage Temperature Max:120°C; Storage Temperature Min:-40°C; Total Light Output:110lm; Voltage Rating V DC:8.31V; Voltage Vf Min:5.43V; Voltage Vf Typ:6.84V; Wavelength Max:520nm; Wavelength Min:490nm

LED FLOOD, LUXEON, 12, LAMBT, RED; Product Range:-; LED Colour:Red; Wavelength Typ:645nm; Luminous Flux @ Test:525lm; Supply Voltage:18V; Power Module Configuration:Flood; Operating Temperature Min:-40°C; Operating Temperature Max:105°C; Luminous Flux @ Max:-; Power Rating:-; Forward Current @ Test:700mA; LED Module Type:Board + LED + Connector; MSL:-; SVHC:No SVHC (07-Jul-2017); Beam Pattern:Lambert; External Depth:65.5mm; External Length / Height:6.4mm; External Width:61.5mm; Forward Current If:770mA; Forward Current If Max:770mA; Forward Current If(AV):700mA; Forward Voltage VF Max:21V; Luminous Flux Min:365lm; Luminous Flux Typ:520lm; No. of LEDs:12LEDs; Operating Temperature Range:-40°C to +105°C; Peak Forward Current:1100mA; Storage Temperature Max:105°C; Storage Temperature Min:-40°C; Viewing Angle:140°; Voltage Vf Min:14V; Voltage Vf Typ:18V; Wavelength Max:645nm; Wavelength Min:620.5nm

LED, LUXEON EMITTER LAMBERT RED; Product Range:-; LED Colour:Red; Wavelength Typ:645nm; Viewing Angle:140°; Luminous Flux @ Test:44lm; Forward Current If Max:385mA; Forward Current @ Test:350mA; Forward Voltage @ Test:2.95V; Luminous Intensity @ Test:-; Power Dissipation Pd:44mW; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (07-Jul-2017); Current Rating:385mA; Forward Current If:385mA; Forward Voltage VF Max:3.51V; LED Mounting:SMD; Luminous Flux:44lm; Luminous Flux Typ:44lm; No. of Pins:2Pins; Operating Temperature Max:120°C; Operating Temperature Min:-40°C; Operating Temperature Range:-40°C to +120°C; PIV Max:5V; Peak Forward Current:550mA; Peak Wavelength:627nm; Power @ Test:1W; Total Light Output:44lm; Voltage Rating V DC:3.51V; Voltage Vf Typ:2.95V

LUXEON HL2X Warm-white 90 CRI CCT 3000K

LUXEON Mid-Power 2835 HE Neutral-white 2835HE 3V 95 CRI 3 SDCM (P,Q,X,13) + opposite bin matching kit (E+G, F+H) CCT 4000K

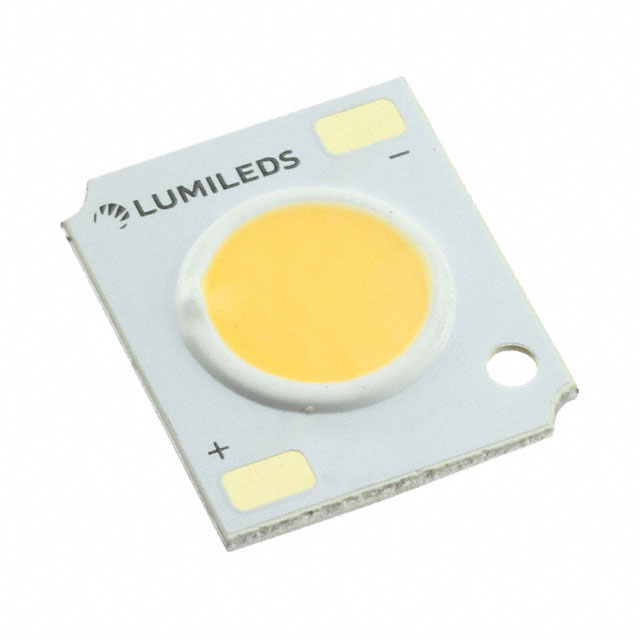

LED COB Neutral White 4000K 1000mA Tray
