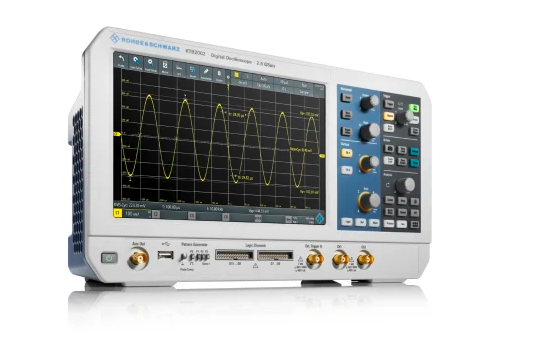

RTB-BNDL
Rohde & Schwarz GmbH & Co. KG
MSO / MDO Oscilloscope, RTB2000 Series, 4 Analogue, 16 Digital, 300 MHz, 1.25 GSPS, 10 Mpts
RTB-BNDL is an oscilloscope package by Rohde & Schwarz
The RTB-BNDL includes:
- RTB2004 Oscilloscope 4 channel 300 MHz
- RTB-B243 300 MHz Bandwidth option
- RTB-B6 ARB GENERATOR
- RTB-K1 I2C/SPI Trigger & Decode
- RTB-K2 UART/RS232 Trigger & Decode RTB-K3 CAN/LIN Trigger & Decode
- RTB-K15 History & Segment Memory
- RTB-K36 Freq. Resp (Bode Plot)
Features & Benefits:
- 10-bit A/D converter resolution
- 1 mV/div true vertical resolution
- 10 Msample standard, 20 Msample interleaved
- 160 Msample segmented memory with more than 13 000 recordings
- History mode: analysis of past acquisitions
- 1.25 Gsample/s, 2.5 Gsample/s interleaved
- Analyze the frequency response of passive filters and amplifier circuits
- Perform control loop response measurements
- Perform power supply rejection ratio measurements
- Simple and fast documentation
- Education mode to disable automatic functions
- X-in-1 integration
- Efficient reporting capabilities
- Localized GUI and online help
- Fully upgradeable via software licenses
- Web server functionality for instrument access
- Extensive range of probes and accessories
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | RTB-BNDL | 1 | 1 | * $7,143.12 | * $7,143.12 | * $7,143.12 | * $7,143.12 | * $7,143.12 | * $7,143.12 |
| Farnell | RTB-BNDL | 1 | 1 | * $4,145.73 | * $4,145.73 | * $4,145.73 | * $4,145.73 | * $4,145.73 | * $4,145.73 |
| Newark | RTB-BNDL | 1 | 1 | $4,355.00 | $4,355.00 | $4,355.00 | $4,355.00 | $4,355.00 | $4,355.00 |

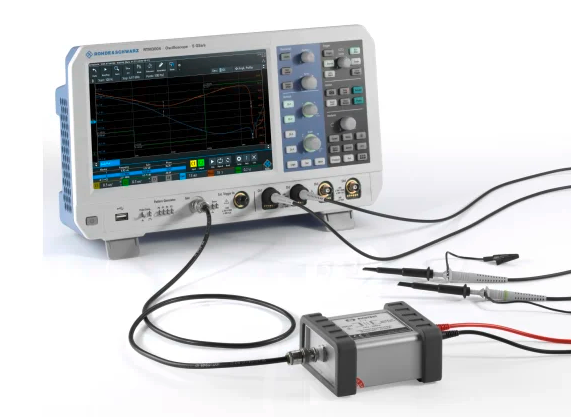

RTM-BNDL
Rohde & Schwarz GmbH & Co. KG
MSO / MDO Oscilloscope, RTM3000 Series, 4+16 Channel, 500 MHz, 2.5 GSPS, 40 Mpts, 700 ps
The RTM-BNDL comprises the RTM3004 Oscilloscope, a 4-channel 100MHz device, bundled with the RTM-B245 500MHz Bandwidth option, and the RTM-PK1 Application Bundle. The RTM-PK1 includes the RTC-B6 ARB GENERATOR, RTC-K1 I2C/SPI Trigger & Decode, RTC-K2 UART/RS232 Trigger & Decode, RTC-K3 CAN/LIN Trigger & Decode, RTM-K5 I2S Trigger & Decode, RTM-K6 MIL-1553 T&D, RTM-K7 ARINC 429 T&D, RTM-K15 History & Segmented Memory, RTM-K31 Power Analysis, RTM-K36 Bode Plot Analysis, and RTM-K37 SPECTRUM AN./SPEC.
The RTM3004 Oscilloscope belongs to the RTM3000 series, featuring a 100MHz bandwidth and 4 channels. It boasts a 10.1" high-resolution (1280 x 800 pixels) capacitive touchscreen TFT display with gesture support, a 10-bit ADC, and a standard 40Msample/channel, 80Msample interleaved memory depth.
Contents:
- RTM3004 Oscilloscope 4 channel 500 MHz
- RTM-B245 500 MHz Bandwidth option
- RTM-B6 ARB GENERATOR
- RTM-K1 I2C/SPI Trigger & Decode
- RTM-K2 UART/RS232 Trigger & Decode
- RTM-K3 CAN/LIN Trigger & Decode
- RTM-K5 I2S Trigger & Decode
- RTM-K6 MIL-1553 T&D
- RTM-K7 ARINC 429 T&D
- RTM-K15 History & Segmented Memory
- RTM-K31 Power Analysis
- RTM-K36 Bode Plot Analysis
- RTM-K37 SPECTRUM AN./SPEC
Features & Benefits:
- 400Msample segmented acquisition memory (optional)
- Maximum sampling rate of 2.5Gsample/s per channel, 5Gsample/s interleaved
- Waveform update rate is 64000waveforms/s
- Minimum input sensitivity is 500µV/div
- 10 second boot time
- I2C, SPI, UART/RS232/ RS422/RS485, CAN, LIN, audio (I²S), ARINC, MIL protocols (optional)
- Arbitrary waveform and 4bit pattern generator optional
- Standard digital voltmeter and trigger counter
- LAN, USB host/device, fast display over Ethernet connectivity
- Oscilloscope size is 390mm x 220mm x 152mm (W x H x D)
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | RTM-BNDL | 1 | 1 | * $11,942.01 | * $11,942.01 | * $11,942.01 | * $11,942.01 | * $11,942.01 | * $11,942.01 |
| Farnell | RTM-BNDL | 1 | 1 | * $10,996.08 | * $10,996.08 | * $10,996.08 | * $10,996.08 | * $10,996.08 | * $10,996.08 |
| Newark | RTM-BNDL | 3 | 1 | $11,015.00 | $11,015.00 | $11,015.00 | $11,015.00 | $11,015.00 | $11,015.00 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | MXO44-243 | 1 | 1 | * $20,113.10 | * $20,113.10 | * $20,113.10 | * $20,113.10 | * $20,113.10 | * $20,113.10 |
| Farnell | MXO44-243 | 1 | 1 | * $16,222.31 | * $16,222.31 | * $16,222.31 | * $16,222.31 | * $16,222.31 | * $16,222.31 |
| Newark | MXO44-243 | 0 | 1 | $15,425.00 | $15,425.00 | $15,425.00 | $15,425.00 | $15,425.00 | $15,425.00 |
R&S® RT-ZI10C-2 REFURBISHED
Rohde & Schwarz GmbH & Co. KG
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Farnell | R&S® RT-ZI10C-2 REFURBISHED | 2 | 1 | * $579.36 | * $579.36 | * $579.36 | * $579.36 | * $579.36 | * $579.36 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Farnell | ZNL3-COM REFURBISHED | 1 | 1 | * $25,670.18 | * $25,670.18 | * $25,670.18 | * $25,670.18 | * $25,670.18 | * $25,670.18 |
