DIP12-2A72-21M
Standex-Meder Electronics
Reed Relay, DIP Series, 12 VDC, 500 ohm, 500 mA, 200 V, DPST-NO RoHS Compliant: Yes
KSK-1A66-2030
Standex-Meder Electronics
REED SWITCH 10W; Product Range:KSK Series; Contact Configuration:SPST-NO; Switch Mounting:-; Contact Current Max:1.25A; Switching Voltage Max:200V; Switching Power Max:10W; Contact Resistance Max:200mohm; Operate AT Min:20AT; Operate AT Max:30AT; AC Power:10VA; Body Diameter:2.2mm; Body Length:10.5mm; Body Material:Glass; Breakdown Voltage Vbr:225VDC; Contact Current AC Max:500mA; Contact Current DC Max:500mA; Contact Resistance:150mohm; DC Power:10W; Insulation Resistance:1000Mohm; Lead Length:12mm; Length:34.5mm; Off Switching Time:0.1; On Switching Time:0.5; Operating Temperature Max:130°C; Operating Temperature Min:-20°C; Operation Ampere Turns Range:10AT to 60AT; Pin Diameter:1.2mm; Switch Case:Glass; Switching Current AC Max:0.5A; Switching Current DC Max:0.5A; Switching Voltage AC / DC Max:200VDC
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | KSK-1A66-2030 | 534 | 10 | * $1.10 | * $1.10 | * $0.96 | * $0.70 | * $0.70 | |
| Farnell | KSK-1A66-2030 | 534 | 10 | * $0.00 | * $0.89 | * $0.71 | * $0.69 | * $0.63 | * $0.63 |
| TME | KSK-1A66-2030 | 2030 | $0.58 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | KSK-1A46-1015 | 240 | 1 | $1.47 | $1.35 | $1.10 | $1.04 | $1.04 | $1.04 |
| Farnell | KSK-1A46-1015 | 240 | 1 | $2.01 | $1.01 | $0.86 | $0.78 | $0.78 | $0.78 |
| Newark | KSK-1A46-1015 | 240 | 1 | $1.37 | $1.31 | $1.20 | $1.12 | $1.12 | $1.12 |
KSK-1A66-2030
Standex-Meder Electronics
REED SWITCH 10W; Product Range:KSK Series; Contact Configuration:SPST-NO; Switch Mounting:-; Contact Current Max:1.25A; Switching Voltage Max:200V; Switching Power Max:10W; Contact Resistance Max:200mohm; Operate AT Min:20AT; ;RoHS Compliant: Yes
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| element14 APAC | KSK-1A66-2030 | 4 | 10 | $1.49 | $1.40 | $1.21 | $1.03 | $1.03 | |
| Farnell | KSK-1A66-2030 | 129 | 10 | $0.00 | $0.77 | $0.65 | $0.60 | $0.53 | $0.53 |
| Newark | KSK-1A66-2030 | 4 | 10 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 |
| TME | KSK-1A66-2030 | 910 | $0.60 |
LS05-1A66-1-500W
Standex-Meder Electronics
SENSOR, LIQUID LEVEL, STAINLESS STEEL; Operating Pressure Max:-; Sensor Body Material:Stainless Steel; Output Current:-; Product Range:- RoHS Compliant: Yes
MK23-85-C-2
Standex-Meder Electronics
REED SWITCH, SPST-NO, 1A, 1KV, SMD; Product Range:-; Contact Configuration:SPST-NO; Switch Mounting:SMD; Contact Current Max:1A; Switching Voltage Max:1kV; Switching Power Max:100W; Contact Resistance Max:0.15ohm; Operate AT RoHS Compliant: Yes
CRR03-1AS
Standex-Meder Electronics
RELAY, REED, SPST-NO, 170V, 0.5A, SMD; Contact Configuration:SPST-NO; Coil Voltage:3VDC; Product Range:CRR Series; Relay Mounting:SMD; Coil Resistance:70ohm; Switching Current Max:500mA; Switching Voltage Max:170V; Coil Voltage VDC Nom:3V; External Depth:8.6mm; External Height:3.55mm; External Width:4.4mm

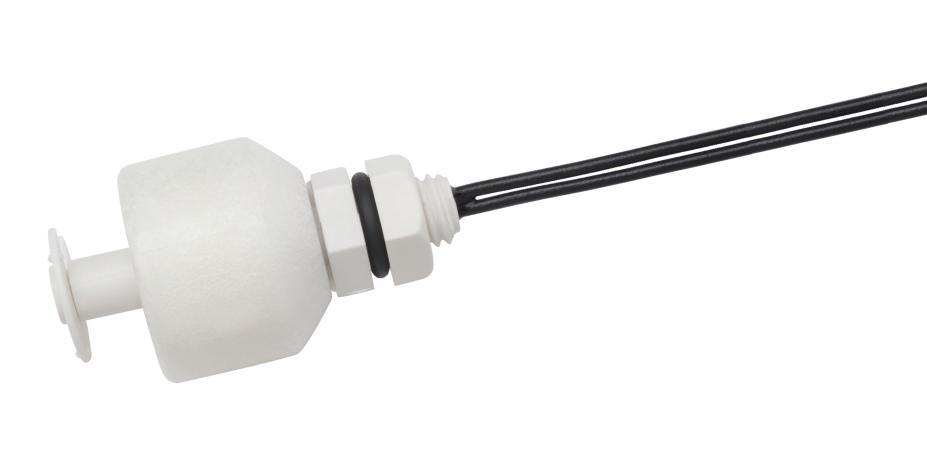

LS04-1A66-5-500W
Standex-Meder Electronics
SENSOR, LIQUID LEVEL, POLYPROPYLENE; Operating Pressure Max:-; Sensor Body Material:PP (Polypropylene); Output Current:-; Product Range:-
DIP12-1A72-12D
Standex-Meder Electronics
RELAY, REED, SPST-NO, 200V, 0.5A, THT; Contact Configuration:SPST-NO; Coil Voltage:12VDC; Product Range:DIP Series; Relay Mounting:Through Hole; Coil Resistance:1kohm; Switching Current Max:500mA; Switching Voltage Max:200V; SVHC:No SVHC (15-Jun-2015); Approval Bodies:UL; Coil Voltage Max:16VDC; Coil Voltage VDC Nom:12V; Contact Current AC Max:1A; Contact Current DC Max:1A; Contact Current Rating:1.25A; Contact Resistance:150mohm; Contact Voltage AC Max:200V; Contact Voltage DC Max:200V; External Depth:19.6mm; External Height:7.7mm; External Length / Height:7.5mm; External Width:6.9mm; No. of Pins:8Pins; Operating Temperature Max:70°C; Operating Temperature Min:-20°C; Operating Time:0.5ms; Release Time:0.1ms; Switch Current Max:1A; Switch Power Max:20W
